341-051-522-103

Active

EDAC Inc.

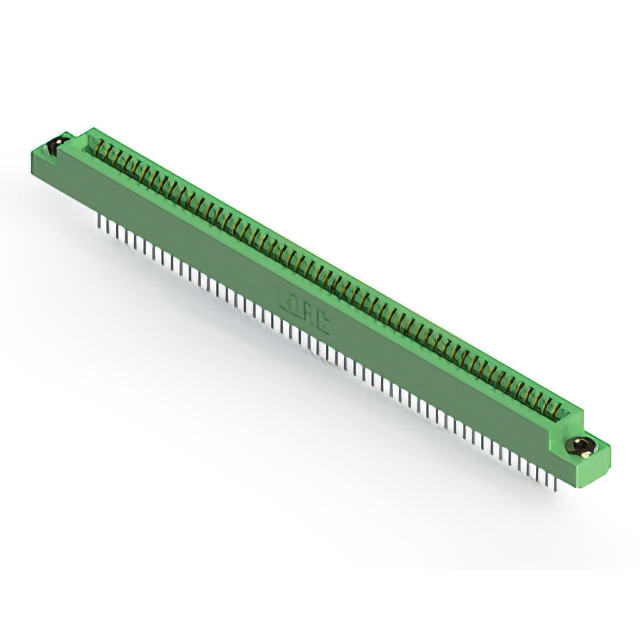

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 51 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

341-051-522-103

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 51 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-051-522-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	51
Number of Positions/Bay/Row [custom]	51
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

341-051 Series

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Contact Material	Contact Finish	Contact Type	Color	Termination	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions	Termination Rows	Material - Insulation	Mounting Type	Read Out	Number of Positions/Bay/Row [custom]	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 341-051-500-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Copper Alloy	Gold	Semi Bellows	Green	Solder Eyelet(s)	Female	-40 °C	105 ░C	0.116 in	Floating Bobbin Flush Mount	2.95 mm	51	1	Diallyl Phthalate (DAP)	Through Hole	Single	51	1	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 341-051-522-104	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Copper Alloy	Gold	Semi Bellows	Green	Solder	Female	-40 °C	105 ░C	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	51	1	Polyester Thermoplastic	Through Hole	Single	51	1	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 341-051-522-107	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Copper Alloy	Gold	Semi Bellows	Green	Solder	Female	-40 °C	105 ░C		Flush Mount M3 Threaded Insert Top Opening		51	1	Polyester Thermoplastic	Through Hole	Single	51	1	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 341-051-500-108	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Copper Alloy	Gold	Semi Bellows	Green	Solder Eyelet(s)	Female	-40 °C	105 ░C		4-40 Flush Mount Threaded Insert Top Opening		51	1	Diallyl Phthalate (DAP)	Through Hole	Single	51	1	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 341-051-520-108	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Copper Alloy	Gold	Semi Bellows	Green	Solder	Female	-40 °C	105 ░C		4-40 Flush Mount Threaded Insert Top Opening		51	1	Polyester Thermoplastic	Through Hole	Single	51	1	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 341-051-522-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Copper Alloy	Gold	Semi Bellows	Green	Solder	Female	-40 °C	105 ░C	0.116 in	Floating Bobbin Flush Mount	2.95 mm	51	1	Polyester Thermoplastic	Through Hole	Single	51	1	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 341-051-524-107	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Copper Alloy	Gold	Semi Bellows	Green	Solder	Female	-40 °C	105 ░C		Flush Mount M3 Threaded Insert Top Opening		51	1	Polyester Thermoplastic	Through Hole	Single	51	1	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 341-051-521-108	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Copper Alloy	Gold	Semi Bellows	Green	Solder	Female	-40 °C	105 ░C		4-40 Flush Mount Threaded Insert Top Opening		51	1	Polyester Thermoplastic	Through Hole	Single	51	1	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 341-051-520-107	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Copper Alloy	Gold	Semi Bellows	Green	Solder	Female	-40 °C	105 ░C		Flush Mount M3 Threaded Insert Top Opening		51	1	Polyester Thermoplastic	Through Hole	Single	51	1	2.54 mm	0.1 in	10 Áin	0.25 Ám
EDAC Inc. 341-051-500-102	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Copper Alloy	Gold	Semi Bellows	Green	Solder Eyelet(s)	Female	-40 °C	105 ░C	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	51	1	Diallyl Phthalate (DAP)	Through Hole	Single	51	1	2.54 mm	0.1 in	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 24.54
Newark	Each	1	$ 27.42
		100	$ 22.33
		250	$ 18.31
		500	$ 17.64
		1000	$ 15.50

Description

General part information

341-051 Series

51 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
