RT061823SNH-K

Active

Amphenol Sine Systems Corp

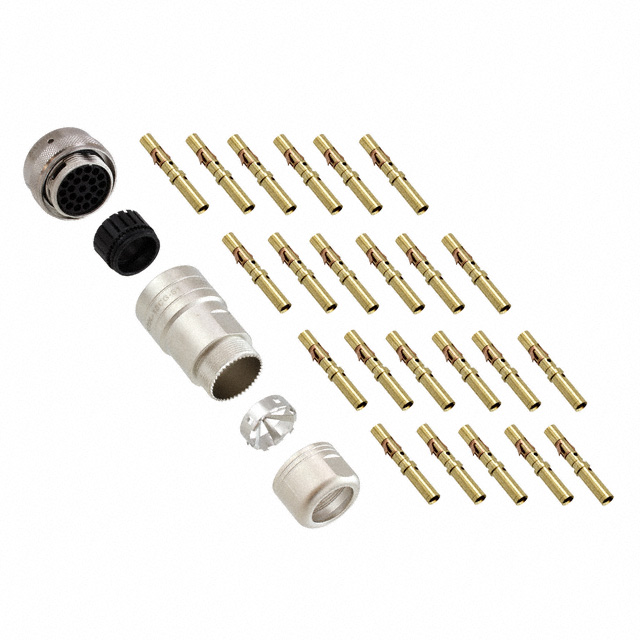

CONN PLUG FMALE 23POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Datasheet +1

RT061823SNH-K

Active

Amphenol Sine Systems Corp

CONN PLUG FMALE 23POS GOLD CRIMP

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT061823SNH-K

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	23
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert [Max] [custom]	23
Shell Size - Insert [Min] [custom]	18
Termination	Crimp
Voltage Rating	250 VAC

RT061823 Series

Part	Fastening Type	Contact Type	Orientation	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Housing Color	Connector Type	Mounting Type	Ingress Protection	Contact Size	Shell Material	Shell Finish	Shielding	Number of Positions	Note	Material Flammability Rating	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Contact Shape	Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Material	Primary Material	Voltage Rating	Current Rating (Amps)	Applications	Color	Termination	Backshell Material, Plating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Includes
Amphenol Sine Systems Corp RT061823PNH	Bayonet Lock	Crimp	N	Thermoplastic	-40 °C	105 ░C	Coupling Nut	Silver	Plug Housing	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	16	Zinc Alloy	Nickel	Shielded	23	Contacts Not Included	UL94 V-0	18	23	Circular	For Male Pins
Amphenol Sine Systems Corp RT061823SNH03SS-K	Bayonet Lock		N	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	Backshell Coupling Nut		Female Sockets Plug	Free Hanging (In-Line)	IP67 IP69K		Zinc Die Cast	Nickel	Shielded	23		UL94 V-0	18	23			Gold	Flash	Brass	Metal	250 VAC	13 A	Aerospace Automation Industrial Telecom Transportation	Silver	Crimp	Nickel Zinc Die Cast	0.394 in	14 mm	10 mm	0.551 in
Amphenol Sine Systems Corp RT061823SNH03	Bayonet Lock	Crimp	N	Thermoplastic	-40 °C	125 °C	Coupling Nut	Silver	Plug Housing	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	16	Zinc Alloy	Nickel	Shielded	23	Contacts Not Included	UL94 V-0	18	23	Circular	For Female Sockets															1 Connector 1 Gasket 1 O-Ring
Amphenol Sine Systems Corp RT061823SNHEC03	Bayonet Lock	Crimp	N	Thermoplastic	-40 °C	125 °C	Coupling Nut	Silver	Plug Housing	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	16	Zinc Alloy	Nickel	Shielded	23	Contacts Not Included	UL94 V-0	18	23	Circular	For Female Sockets				Metal
Amphenol Sine Systems Corp RT061823SNH-K	Bayonet Lock		N		-40 °C	105 ░C			Female Sockets Plug	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof		Zinc Die Cast	Nickel		23			18	23			Gold	Flash		Metal	250 VAC	13 A		Silver	Crimp
Amphenol Sine Systems Corp RT061823SNHEC	Bayonet Lock	Crimp	N	Thermoplastic	-40 °C	105 ░C	Backshell Coupling Nut	Silver	Plug Housing	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	16	Zinc Alloy	Nickel	Shielded	23	Contacts Not Included	UL94 V-0	18	23	Circular	For Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 61.97
		10	$ 56.86
		25	$ 54.68
		50	$ 52.85
		100	$ 49.94

Description

General part information

RT061823 Series

23 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet

ecomate RM, RSSM, RM Flyer

Datasheet
