RT061823PNH

Active

Amphenol Sine Systems Corp

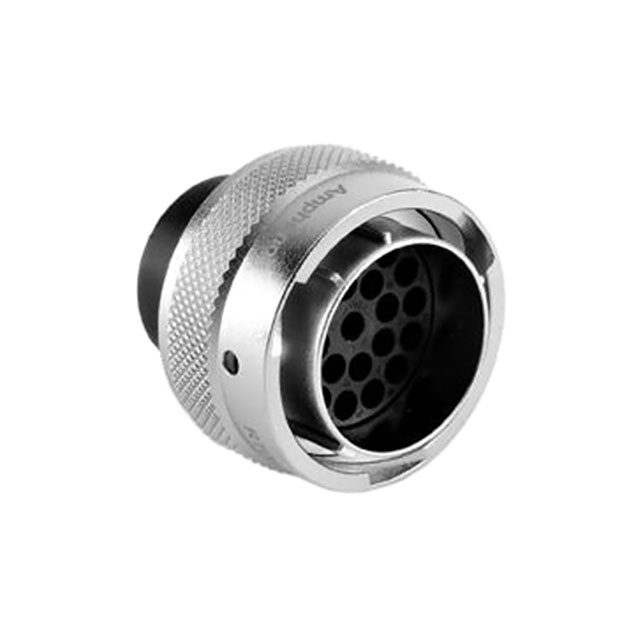

CONN PLUG HSG MALE 23POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ecomate-Family-Flyer-2019

RT061823PNH

Active

Amphenol Sine Systems Corp

CONN PLUG HSG MALE 23POS INLINE

Deep-Dive with AI

DocumentsDatasheet ecomate-Family-Flyer-2019

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT061823PNH

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	23
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max] [custom]	23
Shell Size - Insert [Min] [custom]	18
Shielding	Shielded
Type	For Male Pins

RT061823 Series

Part	Fastening Type	Contact Type	Orientation	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Housing Color	Connector Type	Mounting Type	Ingress Protection	Contact Size	Shell Material	Shell Finish	Shielding	Number of Positions	Note	Material Flammability Rating	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Contact Shape	Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Material	Primary Material	Voltage Rating	Current Rating (Amps)	Applications	Color	Termination	Backshell Material, Plating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Includes
Amphenol Sine Systems Corp RT061823PNH	Bayonet Lock	Crimp	N	Thermoplastic	-40 °C	105 ░C	Coupling Nut	Silver	Plug Housing	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	16	Zinc Alloy	Nickel	Shielded	23	Contacts Not Included	UL94 V-0	18	23	Circular	For Male Pins
Amphenol Sine Systems Corp RT061823SNH03SS-K	Bayonet Lock		N	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C	Backshell Coupling Nut		Female Sockets Plug	Free Hanging (In-Line)	IP67 IP69K		Zinc Die Cast	Nickel	Shielded	23		UL94 V-0	18	23			Gold	Flash	Brass	Metal	250 VAC	13 A	Aerospace Automation Industrial Telecom Transportation	Silver	Crimp	Nickel Zinc Die Cast	0.394 in	14 mm	10 mm	0.551 in
Amphenol Sine Systems Corp RT061823SNH03	Bayonet Lock	Crimp	N	Thermoplastic	-40 °C	125 °C	Coupling Nut	Silver	Plug Housing	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	16	Zinc Alloy	Nickel	Shielded	23	Contacts Not Included	UL94 V-0	18	23	Circular	For Female Sockets															1 Connector 1 Gasket 1 O-Ring
Amphenol Sine Systems Corp RT061823SNHEC03	Bayonet Lock	Crimp	N	Thermoplastic	-40 °C	125 °C	Coupling Nut	Silver	Plug Housing	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	16	Zinc Alloy	Nickel	Shielded	23	Contacts Not Included	UL94 V-0	18	23	Circular	For Female Sockets				Metal
Amphenol Sine Systems Corp RT061823SNH-K	Bayonet Lock		N		-40 °C	105 ░C			Female Sockets Plug	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof		Zinc Die Cast	Nickel		23			18	23			Gold	Flash		Metal	250 VAC	13 A		Silver	Crimp
Amphenol Sine Systems Corp RT061823SNHEC	Bayonet Lock	Crimp	N	Thermoplastic	-40 °C	105 ░C	Backshell Coupling Nut	Silver	Plug Housing	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	16	Zinc Alloy	Nickel	Shielded	23	Contacts Not Included	UL94 V-0	18	23	Circular	For Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.38
		10	$ 15.59

Description

General part information

RT061823 Series

23 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut

Documents

Technical documentation and resources

Datasheet

ecomate-Family-Flyer-2019

Datasheet
