150260-5002-RB

Active

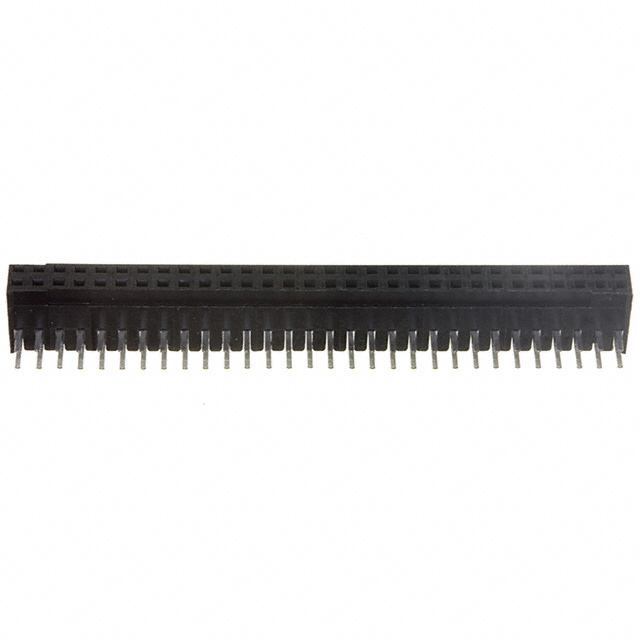

CONN RCPT 60P 0.079 GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150260-5002-RB

Active

CONN RCPT 60P 0.079 GOLD PCB R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

150260 Series

60 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150260-5002-RB	150260 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	-	Board Guide
Insulation Color	Black	Black
Insulation Height	0.179 "	0.177 - 0.183 in
Insulation Height	4.55 mm	4.5 - 4.65 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle, Surface Mount
Number of Positions	60	60
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150260 Series

CONN RCPT 60POS 0.079 GOLD PCB

Part	Number of Positions	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions Loaded	Fastening Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Connector Type	Insulation Material	Termination	Contact Finish - Post	Mounting Type	Features
3M 150260-6002-TB	60	Copper Alloy	30 Áin	0.76 Ám	Board to Board, Cable	0.079 in	2 mm	2.54 mm	0.1 in	Square	0.079 in	2 mm	Black	Gold	200 µin	5.08 µm	2	0.177 in	4.5 mm	UL94 V-0	All	Push-Pull	Female Socket	105 ░C	-55 °C	500 V	Receptacle	Thermoplastic	Solder	Tin-Lead	Through Hole
3M 150260-5002-RB	60	Copper Alloy	30 Áin	0.76 Ám	Board to Board, Cable	0.079 in	2 mm	2.54 mm	0.1 in	Square	0.079 in	2 mm	Black	Gold	200 µin	5.08 µm	2	0.179 "	4.55 mm	UL94 V-0	All	Push-Pull	Female Socket	105 ░C	-55 °C	500 V	Receptacle	Thermoplastic	Solder	Tin	Through Hole, Right Angle
3M 150260-6002-RB	60	Copper Alloy	30 Áin	0.76 Ám	Board to Board, Cable	0.079 in	2 mm	2.54 mm	0.1 in	Square	0.079 in	2 mm	Black	Gold	200 µin	5.08 µm	2	0.177 in	4.5 mm	UL94 V-0	All	Push-Pull	Female Socket	105 ░C	-55 °C	500 V	Receptacle	Thermoplastic	Solder	Tin	Through Hole
3M 150260-2020-RB	60	Copper Alloy	30 Áin	0.76 Ám	Board to Board, Cable	0.079 in	2 mm			Square	0.079 in	2 mm	Black	Gold	200 µin	5.08 µm	2	0.183 in	4.65 mm	UL94 V-0	All	Push-Pull	Female Socket	105 ░C	-55 °C	500 V	Receptacle	Thermoplastic	Solder	Tin	Surface Mount	Board Guide
