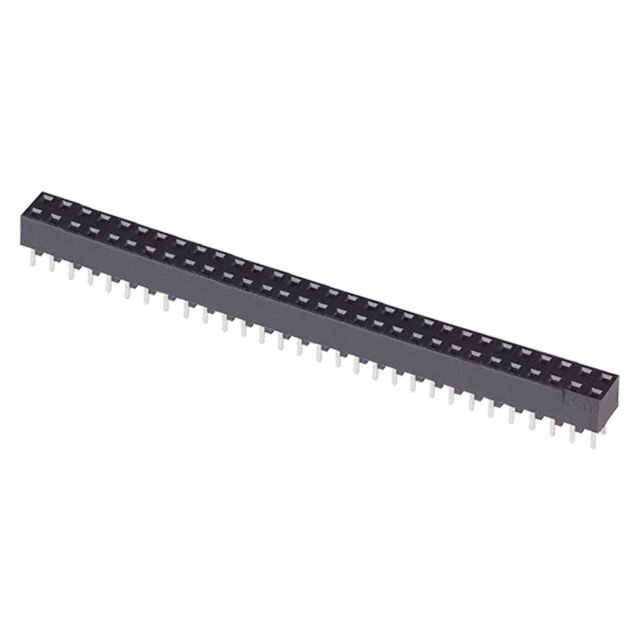

CONN SOCKET STRIP SKT 60 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150260-6002-RB

Active

CONN SOCKET STRIP SKT 60 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BOX

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150260-6002-RB	150260 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	-	Board Guide
Insulation Color	Black	Black
Insulation Height	0.177 in	0.177 - 0.183 in
Insulation Height	4.5 mm	4.5 - 4.65 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle, Surface Mount
Number of Positions	60	60
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150260 Series

CONN RCPT 60POS 0.079 GOLD PCB

Part	Number of Positions	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions Loaded	Fastening Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Connector Type	Insulation Material	Termination	Contact Finish - Post	Mounting Type	Features
3M 150260-6002-TB	60	Copper Alloy	30 Áin	0.76 Ám	Board to Board, Cable	0.079 in	2 mm	2.54 mm	0.1 in	Square	0.079 in	2 mm	Black	Gold	200 µin	5.08 µm	2	0.177 in	4.5 mm	UL94 V-0	All	Push-Pull	Female Socket	105 ░C	-55 °C	500 V	Receptacle	Thermoplastic	Solder	Tin-Lead	Through Hole
3M 150260-5002-RB	60	Copper Alloy	30 Áin	0.76 Ám	Board to Board, Cable	0.079 in	2 mm	2.54 mm	0.1 in	Square	0.079 in	2 mm	Black	Gold	200 µin	5.08 µm	2	0.179 "	4.55 mm	UL94 V-0	All	Push-Pull	Female Socket	105 ░C	-55 °C	500 V	Receptacle	Thermoplastic	Solder	Tin	Through Hole, Right Angle
3M 150260-6002-RB	60	Copper Alloy	30 Áin	0.76 Ám	Board to Board, Cable	0.079 in	2 mm	2.54 mm	0.1 in	Square	0.079 in	2 mm	Black	Gold	200 µin	5.08 µm	2	0.177 in	4.5 mm	UL94 V-0	All	Push-Pull	Female Socket	105 ░C	-55 °C	500 V	Receptacle	Thermoplastic	Solder	Tin	Through Hole
3M 150260-2020-RB	60	Copper Alloy	30 Áin	0.76 Ám	Board to Board, Cable	0.079 in	2 mm			Square	0.079 in	2 mm	Black	Gold	200 µin	5.08 µm	2	0.183 in	4.65 mm	UL94 V-0	All	Push-Pull	Female Socket	105 ░C	-55 °C	500 V	Receptacle	Thermoplastic	Solder	Tin	Surface Mount	Board Guide
