1212A2

Active

APEM Inc.

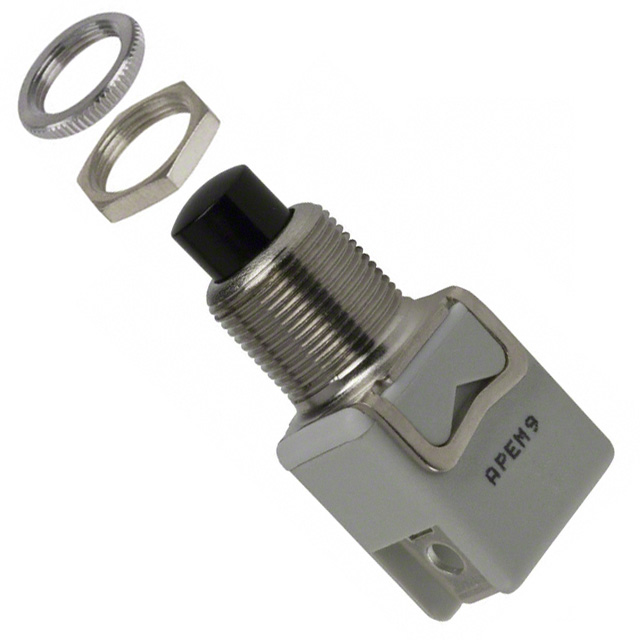

PUSHBUTTON SWITCH, 1200 SERIES, 12.2 MM, SPST-NC, MOMENTARY, ROUND PLUNGER, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

1212A2

Active

APEM Inc.

PUSHBUTTON SWITCH, 1200 SERIES, 12.2 MM, SPST-NC, MOMENTARY, ROUND PLUNGER, BLACK

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1212A2	1212 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Plunger	Round, Plunger
Circuit	SPST-NC	SPST-NC
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	4 A, 8 A	2 - 8 A
Electrical Life	10000 Cycles	10000 Cycles
Mounting Type	Panel Mount, Rear	Panel Mount, Rear
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-Mom	On-Mom
Type	Standard	Standard
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	24 V	24 V

1212 Series

SWITCH PUSH SPST-NC 3A 125V

Part	Actuator Marking	Circuit	Voltage Rating - DC	Mounting Type	Actuator Type	Panel Cutout Dimensions [diameter]	Electrical Life	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Type	Color - Actuator/Cap	Current Rating (Amps)
APEM Inc. 1212C2	No Marking	SPST-NC	24 V	Panel Mount, Rear	Round, Plunger	12.2 mm	10000 Cycles	125 V	55 °C	-20 C	On-Mom	Standard	Black	2 A, 3 A
APEM Inc. 1212A2	No Marking	SPST-NC	24 V	Panel Mount, Rear	Round, Plunger	12.2 mm	10000 Cycles	125 V	55 °C	-20 C	On-Mom	Standard	Black	4 A, 8 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.61
		10	$ 10.02
		40	$ 9.17
		80	$ 8.77
		120	$ 8.54
		280	$ 8.09
		520	$ 7.77
		1000	$ 7.45
Newark	Each	1	$ 8.41
		10	$ 7.40
		25	$ 6.73
		50	$ 6.52
		100	$ 6.31

Description

General part information

1212 Series

The 1212A2 is a single-pole single-throw (SPST) Pushbutton Switch with a polyamide round plunger and NC On-On momentary silver contacts. This 1200 series switch features quick-connect terminals, polyamide case and nickel plated brass bushing.
