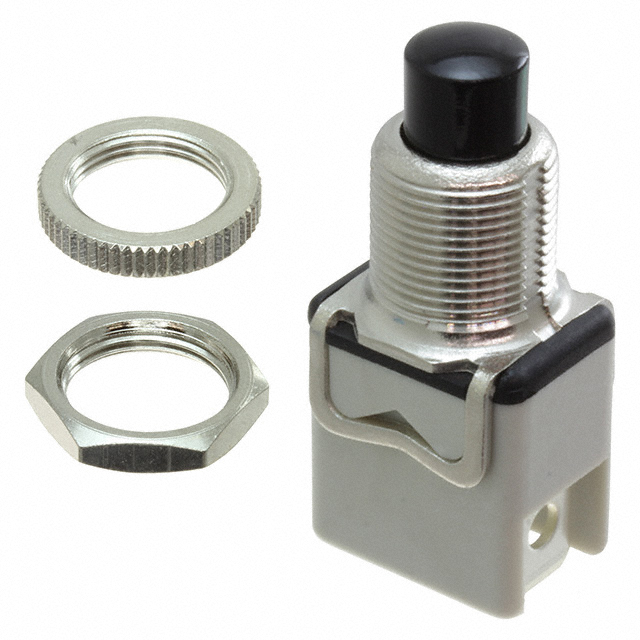

1212C2

Active

APEM Inc.

SWITCH PUSH SPST-NC 3A 125V

Search across all available documentation for this part.

Active

APEM Inc.

SWITCH PUSH SPST-NC 3A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1212C2	1212 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Plunger	Round, Plunger
Circuit	SPST-NC	SPST-NC
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	2 A, 3 A	2 - 8 A
Electrical Life	10000 Cycles	10000 Cycles
Mounting Type	Panel Mount, Rear	Panel Mount, Rear
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-Mom	On-Mom
Type	Standard	Standard
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	24 V	24 V

SWITCH PUSH SPST-NC 3A 125V

Part	Actuator Marking	Circuit	Voltage Rating - DC	Mounting Type	Actuator Type	Panel Cutout Dimensions [diameter]	Electrical Life	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Type	Color - Actuator/Cap	Current Rating (Amps)
APEM Inc. 1212C2	No Marking	SPST-NC	24 V	Panel Mount, Rear	Round, Plunger	12.2 mm	10000 Cycles	125 V	55 °C	-20 C	On-Mom	Standard	Black	2 A, 3 A
APEM Inc. 1212A2	No Marking	SPST-NC	24 V	Panel Mount, Rear	Round, Plunger	12.2 mm	10000 Cycles	125 V	55 °C	-20 C	On-Mom	Standard	Black	4 A, 8 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Rear
