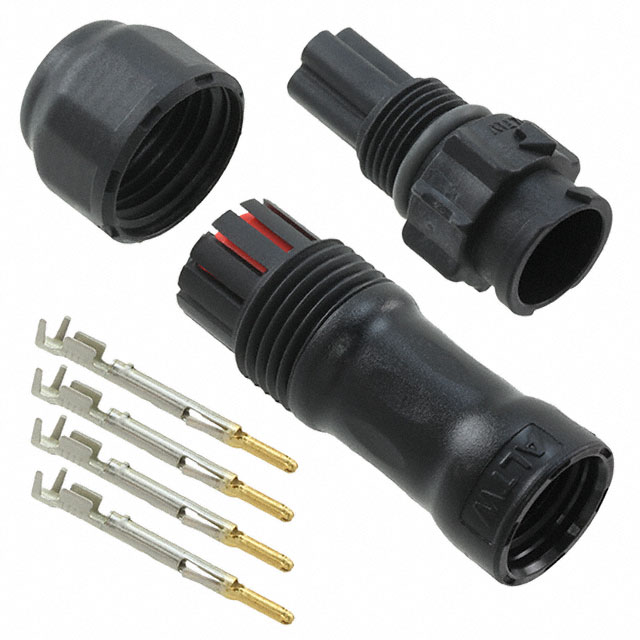

BB-04BMMA-QL8SPP

Active

Amphenol LTW

CONN RCPT MALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	BB-04BMMA-QL8SPP

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Crimp

Part	Connector Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish - Mating	Number of Positions	Features	Shell Size - Insert	Ingress Protection	Mounting Type	Color	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shell Material	Primary Material	Voltage Rating	Shielding	Fastening Type	Insert Material	Termination	Current Rating (Amps)	Orientation	Contact Shape	Type	Note	Contact Type	Housing Color
Amphenol LTW BB-04BMMA-QL8MPP	Male Pins Plug	Copper Alloy	-40 °C	105 ░C	UL94 V-0	Gold	4	Backshell Strain Relief	B	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Black	8 mm	6 mm	0.315 in	0.236 in	Glass Filled Nylon Polyamide (PA)	Plastic	300 VAC	Unshielded	Push-Pull	Polyamide (PA) Nylon Glass Filled	Crimp	10 A	Keyed
Amphenol LTW BB-04BMMA-QL8ANP	Plug Housing		-40 °C	105 ░C			4	Backshell	B	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)							Plastic		Unshielded	Push-Pull	Thermoplastic			Keyed	Circular	For Male Pins	Contacts Not Included	Crimp	Black
Amphenol LTW BB-04BMMA-QL8SPP	Male Pins Receptacle	Copper Alloy	-20 C	105 ░C	UL94 V-0	Gold	4	Backshell Strain Relief	B	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Black					Glass Filled Nylon Polyamide (PA)	Plastic		Unshielded	Push-Pull	Polyamide (PA) Nylon Glass Filled	Crimp	10 A	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (Power) Position Circular Connector Receptacle, Male Pins Crimp
