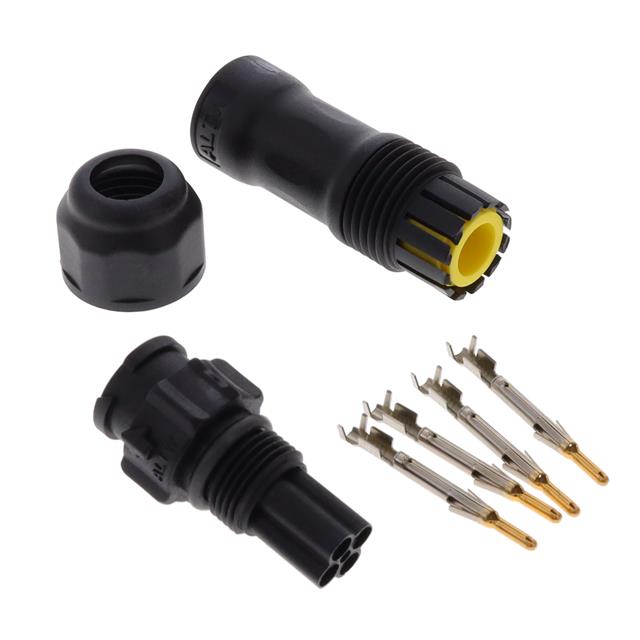

BB-04BMMA-QL8MPP

Active

Amphenol LTW

X-LOK, STANDARD SIZE, 10A, 04 PI

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, STANDARD SIZE, 10A, 04 PI

Technical Specifications

Parameters and characteristics for this part

Specification	BB-04BMMA-QL8MPP

Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VAC

Part	Connector Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish - Mating	Number of Positions	Features	Shell Size - Insert	Ingress Protection	Mounting Type	Color	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shell Material	Primary Material	Voltage Rating	Shielding	Fastening Type	Insert Material	Termination	Current Rating (Amps)	Orientation	Contact Shape	Type	Note	Contact Type	Housing Color
Amphenol LTW BB-04BMMA-QL8MPP	Male Pins Plug	Copper Alloy	-40 °C	105 ░C	UL94 V-0	Gold	4	Backshell Strain Relief	B	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Black	8 mm	6 mm	0.315 in	0.236 in	Glass Filled Nylon Polyamide (PA)	Plastic	300 VAC	Unshielded	Push-Pull	Polyamide (PA) Nylon Glass Filled	Crimp	10 A	Keyed
Amphenol LTW BB-04BMMA-QL8ANP	Plug Housing		-40 °C	105 ░C			4	Backshell	B	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)							Plastic		Unshielded	Push-Pull	Thermoplastic			Keyed	Circular	For Male Pins	Contacts Not Included	Crimp	Black
Amphenol LTW BB-04BMMA-QL8SPP	Male Pins Receptacle	Copper Alloy	-20 C	105 ░C	UL94 V-0	Gold	4	Backshell Strain Relief	B	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Black					Glass Filled Nylon Polyamide (PA)	Plastic		Unshielded	Push-Pull	Polyamide (PA) Nylon Glass Filled	Crimp	10 A	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (Power) Position Circular Connector Plug, Male Pins Crimp
