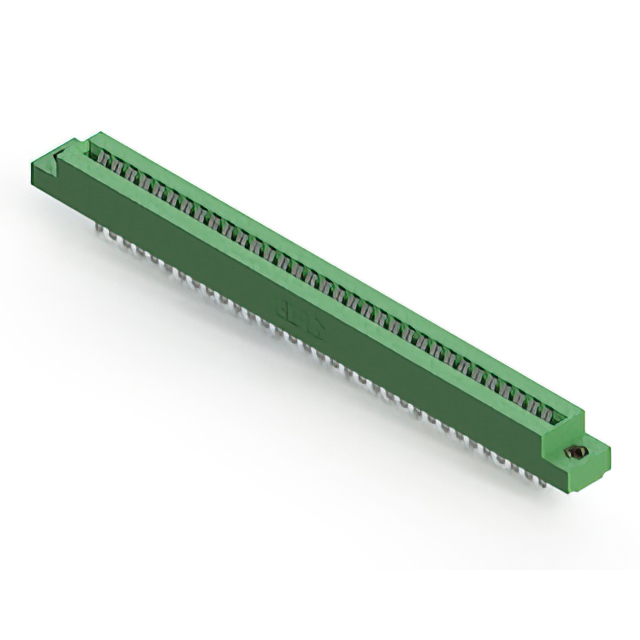

306-033-400-108

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

306-033-400-108

Active

EDAC Inc.

CONN EDGE DUAL FMALE 66POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-033-400-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions	66
Number of Positions/Bay/Row [custom]	33
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

306-033 Series

Part	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Contact Material	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Contact Finish	Flange Feature	Number of Positions	Gender	Color	Number of Rows	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Card Type	Read Out	Mounting Type	Features	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 306-033-400-108	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Copper Alloy	33	0.156 in	3.96 mm	Tin	4-40 Flush Mount Threaded Insert Top Opening	66	Female	Green	2	Polyester Thermoplastic	-40 °C	105 ░C	Cantilever	Non Specified - Dual Edge	Dual
EDAC Inc. 306-033-420-168	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Copper Alloy	33	0.156 in	3.96 mm	Tin	4-40 Flush Mount Threaded Insert Top Opening	66	Female	Green	2	Polyester Thermoplastic	-40 °C	105 ░C	Cantilever	Non Specified - Dual Edge	Dual	Panel Mount Through Hole	Card Guides
EDAC Inc. 306-033-421-102	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Copper Alloy	33	0.156 in	3.96 mm	Tin	Flush Mount Top Opening Unthreaded	66	Female	Green	2	Polyester Thermoplastic	-40 °C	105 ░C	Cantilever	Non Specified - Dual Edge	Dual	Panel Mount Through Hole		3.25 mm	0.128 "
EDAC Inc. 306-033-400-158	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Copper Alloy	33	0.156 in	3.96 mm	Tin	4-40 Flush Mount Threaded Insert Top Opening	66	Female	Green	2	Polyester Thermoplastic	-40 °C	105 ░C	Cantilever	Non Specified - Dual Edge	Dual		Card Guides
EDAC Inc. 306-033-521-101	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Copper Alloy	33	0.156 in	3.96 mm	Gold		66	Female	Green	2	Polyester Thermoplastic	-40 °C	105 ░C	Cantilever	Non Specified - Dual Edge	Dual	Through Hole				10 Áin	0.25 Ám
EDAC Inc. 306-033-421-108	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Copper Alloy	33	0.156 in	3.96 mm	Tin	4-40 Flush Mount Threaded Insert Top Opening	66	Female	Green	2	Polyester Thermoplastic	-40 °C	105 ░C	Cantilever	Non Specified - Dual Edge	Dual	Panel Mount Through Hole
EDAC Inc. 306-033-520-101	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Copper Alloy	33	0.156 in	3.96 mm	Gold		66	Female	Green	2	Polyester Thermoplastic	-40 °C	105 ░C	Cantilever	Non Specified - Dual Edge	Dual	Through Hole				10 Áin	0.25 Ám
EDAC Inc. 306-033-420-104	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Copper Alloy	33	0.156 in	3.96 mm	Tin	Flush Mount Top Opening Unthreaded	66	Female	Green	2	Polyester Thermoplastic	-40 °C	105 ░C	Cantilever	Non Specified - Dual Edge	Dual	Panel Mount Through Hole		3.96 mm	0.156 in
EDAC Inc. 306-033-420-178	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Copper Alloy	33	0.156 in	3.96 mm	Tin	4-40 Flush Mount Threaded Insert Top Opening	66	Female	Green	2	Polyester Thermoplastic	-40 °C	105 ░C	Cantilever	Non Specified - Dual Edge	Dual	Panel Mount Through Hole	Card Guides
EDAC Inc. 306-033-420-103	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Copper Alloy	33	0.156 in	3.96 mm	Tin	Floating Bobbin Flush Mount	66	Female	Green	2	Polyester Thermoplastic	-40 °C	105 ░C	Cantilever	Non Specified - Dual Edge	Dual	Panel Mount Through Hole		2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 19.44

Description

General part information

306-033 Series

66 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
