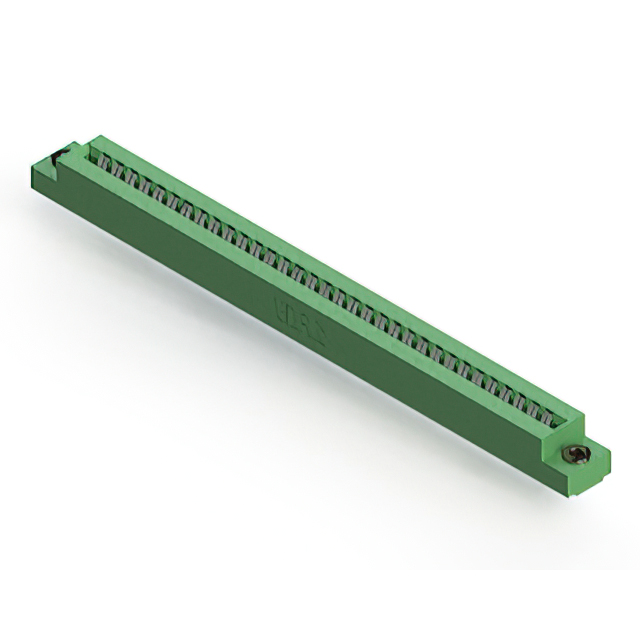

306-033-420-103
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 66POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
306-033-420-103
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 66POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-033-420-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 66 |
| Number of Positions/Bay/Row [custom] | 33 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
306-033 Series
| Part | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Contact Material | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Contact Finish | Flange Feature | Number of Positions | Gender | Color | Number of Rows | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Card Type | Read Out | Mounting Type | Features | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Copper Alloy | 33 | 0.156 in | 3.96 mm | Tin | 4-40 Flush Mount Threaded Insert Top Opening | 66 | Female | Green | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Dual | ||||||
EDAC Inc. | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Copper Alloy | 33 | 0.156 in | 3.96 mm | Tin | 4-40 Flush Mount Threaded Insert Top Opening | 66 | Female | Green | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Dual | Panel Mount Through Hole | Card Guides | ||||
EDAC Inc. | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Copper Alloy | 33 | 0.156 in | 3.96 mm | Tin | Flush Mount Top Opening Unthreaded | 66 | Female | Green | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Dual | Panel Mount Through Hole | 3.25 mm | 0.128 " | |||
EDAC Inc. | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Copper Alloy | 33 | 0.156 in | 3.96 mm | Tin | 4-40 Flush Mount Threaded Insert Top Opening | 66 | Female | Green | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Dual | Card Guides | |||||
EDAC Inc. | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Copper Alloy | 33 | 0.156 in | 3.96 mm | Gold | 66 | Female | Green | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Dual | Through Hole | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Copper Alloy | 33 | 0.156 in | 3.96 mm | Tin | 4-40 Flush Mount Threaded Insert Top Opening | 66 | Female | Green | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Dual | Panel Mount Through Hole | |||||
EDAC Inc. | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Copper Alloy | 33 | 0.156 in | 3.96 mm | Gold | 66 | Female | Green | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Dual | Through Hole | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Copper Alloy | 33 | 0.156 in | 3.96 mm | Tin | Flush Mount Top Opening Unthreaded | 66 | Female | Green | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Dual | Panel Mount Through Hole | 3.96 mm | 0.156 in | |||
EDAC Inc. | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Copper Alloy | 33 | 0.156 in | 3.96 mm | Tin | 4-40 Flush Mount Threaded Insert Top Opening | 66 | Female | Green | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Dual | Panel Mount Through Hole | Card Guides | ||||
EDAC Inc. | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Copper Alloy | 33 | 0.156 in | 3.96 mm | Tin | Floating Bobbin Flush Mount | 66 | Female | Green | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Cantilever | Non Specified - Dual Edge | Dual | Panel Mount Through Hole | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 19.44 | |
Description
General part information
306-033 Series
66 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
