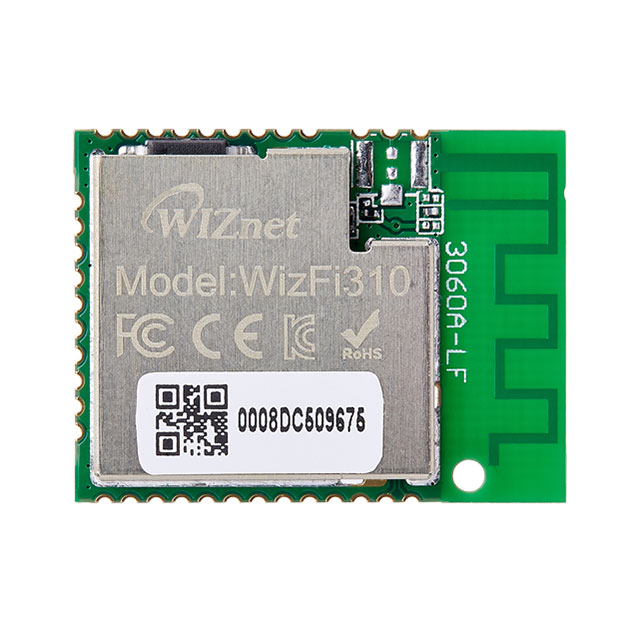

WIZFI310-PA

Obsolete

WIZnet

RF TXRX MOD WIFI TH SMD

Search across all available documentation for this part.

Obsolete

WIZnet

RF TXRX MOD WIFI TH SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WIZFI310-PA	WIZFI310 Series

Antenna Type	Integrated, Trace	Integrated, Trace
Current - Receiving	62 mA	62 mA
Current - Transmitting	162 mA	162 mA
Data Rate	150 Mbps	150 Mbps
For Use With/Related Products	-	WizFi330
Frequency	2.4 GHz	2.4 GHz
Modulation	QPSK, OFDM, DBPSK, DQPSK, CCK, 64-QAM, DSSS, BPSK, 16-QAM	QPSK, OFDM, DBPSK, DQPSK, CCK, 64-QAM, DSSS, BPSK, 16-QAM
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Package / Case	35-SMD Module	35-SMD Module
Protocol	802.11b/g/n	802.11b/g/n
RF Family/Standard	WiFi	WiFi
Sensitivity	-78 dBm	-78 dBm
Serial Interfaces	UART	UART
Supplied Contents	-	Board(s)
Type	-	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
Voltage - Supply	3.3 V	3.3 V

RF TXRX MOD WIFI TH SMD

Part	Mounting Type	Antenna Type	Voltage - Supply	Sensitivity	Current - Transmitting	Modulation	RF Family/Standard	Package / Case	Frequency	Data Rate	Protocol	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving	Type	For Use With/Related Products	Supplied Contents
WIZnet WIZFI310-CON	Surface Mount	Integrated, Trace	3.3 V	-78 dBm	162 mA	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK	WiFi	35-SMD Module	2.4 GHz	150 Mbps	802.11b/g/n	UART	85 °C	-20 C	62 mA
WIZnet WIZFI310-PA	Surface Mount	Integrated, Trace	3.3 V	-78 dBm	162 mA	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK	WiFi	35-SMD Module	2.4 GHz	150 Mbps	802.11b/g/n	UART	85 °C	-20 C	62 mA
WIZnet WIZFI310-EVB									2.4 GHz							Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)	WizFi330	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount

Technical documentation and resources

No documents available
