WIZFI310-EVB

Obsolete

WIZnet

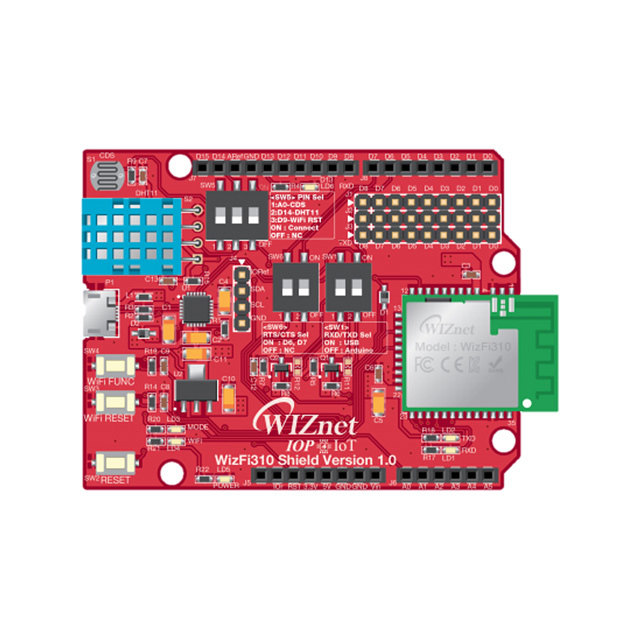

EVALUATION BOARD FOR WIZFI310

Search across all available documentation for this part.

Obsolete

WIZnet

EVALUATION BOARD FOR WIZFI310

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WIZFI310-EVB	WIZFI310 Series

Antenna Type	-	Integrated, Trace
Current - Receiving	-	62 mA
Current - Transmitting	-	162 mA
Data Rate	-	150 Mbps
For Use With/Related Products	WizFi330	WizFi330
Frequency	2.4 GHz	2.4 GHz
Modulation	-	QPSK, OFDM, DBPSK, DQPSK, CCK, 64-QAM, DSSS, BPSK, 16-QAM
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-20 C
Package / Case	-	35-SMD Module
Protocol	-	802.11b/g/n
RF Family/Standard	-	WiFi
Sensitivity	-	-78 dBm
Serial Interfaces	-	UART
Supplied Contents	Board(s)	Board(s)
Type	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
Voltage - Supply	-	3.3 V

RF TXRX MOD WIFI TH SMD

Part	Mounting Type	Antenna Type	Voltage - Supply	Sensitivity	Current - Transmitting	Modulation	RF Family/Standard	Package / Case	Frequency	Data Rate	Protocol	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving	Type	For Use With/Related Products	Supplied Contents
WIZnet WIZFI310-CON	Surface Mount	Integrated, Trace	3.3 V	-78 dBm	162 mA	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK	WiFi	35-SMD Module	2.4 GHz	150 Mbps	802.11b/g/n	UART	85 °C	-20 C	62 mA
WIZnet WIZFI310-PA	Surface Mount	Integrated, Trace	3.3 V	-78 dBm	162 mA	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK	WiFi	35-SMD Module	2.4 GHz	150 Mbps	802.11b/g/n	UART	85 °C	-20 C	62 mA
WIZnet WIZFI310-EVB									2.4 GHz							Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)	WizFi330	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

- WizFi330 Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) 2.4GHz Evaluation Board
