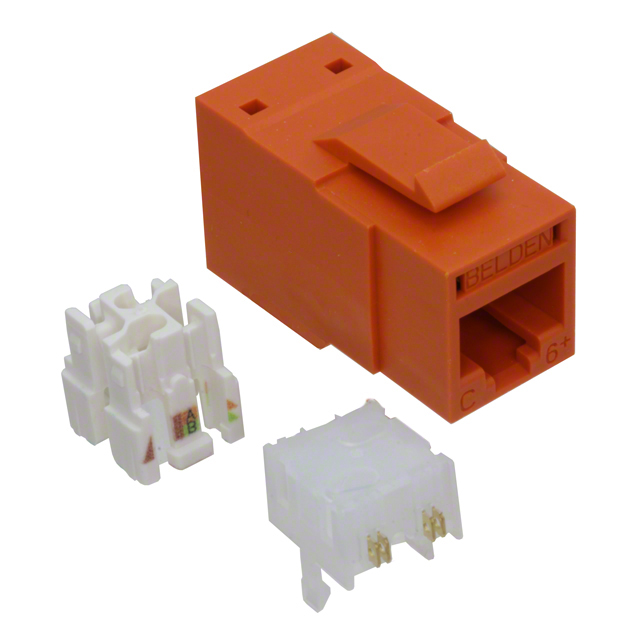

Specification	RV6IJ2UOR-B24

Connector Type	Jack, Ethernet, RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Material	Nickel
Housing Material	Glass Filled, Polybutylene Terephthalate, PBT
Ingress Protection	IP20
LED Color	Does Not Contain LED
Mounting Type	Panel Mount
Number of Contacts	8
Number of Ports	1
Number of Positions	8
Number of Rows	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Orientation	Straight
Ratings	Cat6
Shielding	Unshielded
Tab Direction	Down
Termination	IDC

RV6IJ2 Series

Part	Connector Type	Contact Material	Mounting Type	Number of Rows	Shielding	LED Color	Number of Positions	Number of Contacts	Ratings	Tab Direction	Orientation	Contact Finish	Ingress Protection	Number of Ports	Termination	Housing Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness
Belden Inc. RV6IJ2UBK-B24	Ethernet Jack RJ45	Nickel	Panel Mount	1	Unshielded	Does Not Contain LED	8	8	Cat6	Down	Straight	Gold	IP20	1	IDC	Glass Filled PBT Polybutylene Terephthalate	-40 °C	70 °C	50 µin
Belden Inc. RV6IJ2UTE-S1	Ethernet Jack RJ45	Nickel	Panel Mount	1	Unshielded	Does Not Contain LED	8	8	Cat6	Down	Straight	Gold	IP20	1	IDC	Glass Filled PBT Polybutylene Terephthalate	-40 °C	70 °C	50 µin
Belden Inc. RV6IJ2UBK-S1	Ethernet Jack RJ45	Nickel	Panel Mount	1	Unshielded	Does Not Contain LED	8	8	Cat6	Down	Straight	Gold	IP20	1	IDC	Glass Filled PBT Polybutylene Terephthalate	-40 °C	70 °C	50 µin
Belden Inc. RV6IJ2UTE-B24	Ethernet Jack RJ45	Nickel	Panel Mount	1	Unshielded	Does Not Contain LED	8	8	Cat6	Down	Straight	Gold	IP20	1	IDC	Glass Filled PBT Polybutylene Terephthalate	-40 °C	70 °C	50 µin
Belden Inc. RV6IJ2SME-B24	Ethernet Jack RJ45	Nickel	Panel Mount	1	Shielded	Does Not Contain LED	8	8	Cat6	Down	Straight	Gold	IP20	1	IDC	Nickel Plated Zinc Die Cast	-40 °C	70 °C	50 µin
Belden Inc. RV6IJ2SME-S1	Ethernet Jack RJ45	Nickel	Panel Mount	1	Shielded	Does Not Contain LED	8	8	Cat6	Down	Straight	Gold	IP20	1	IDC	Nickel Plated Zinc Die Cast	-40 °C	70 °C	50 µin
Belden Inc. RV6IJ2UBL-B24	Ethernet Jack RJ45	Nickel	Panel Mount	1	Unshielded	Does Not Contain LED	8	8	Cat6	Down	Straight	Gold	IP20	1	IDC	Glass Filled PBT Polybutylene Terephthalate	-40 °C	70 °C	50 µin
Belden Inc. RV6IJ2UOR-B24	Ethernet Jack RJ45	Nickel	Panel Mount	1	Unshielded	Does Not Contain LED	8	8	Cat6	Down	Straight	Gold	IP20	1	IDC	Glass Filled PBT Polybutylene Terephthalate	-40 °C	70 °C	50 µin
Belden Inc. RV6IJ2UBL-S1	Ethernet Jack RJ45	Nickel	Panel Mount	1	Unshielded	Does Not Contain LED	8	8	Cat6	Down	Straight	Gold	IP20	1	IDC	Glass Filled PBT Polybutylene Terephthalate	-40 °C	70 °C	50 µin
Belden Inc. RV6IJ2UEW-B24	Ethernet Jack RJ45	Nickel	Panel Mount	1	Unshielded	Does Not Contain LED	8	8	Cat6	Down	Straight	Gold	IP20	1	IDC	Glass Filled PBT Polybutylene Terephthalate	-40 °C	70 °C	50 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RV6IJ2UOR-B24 | Datasheet
