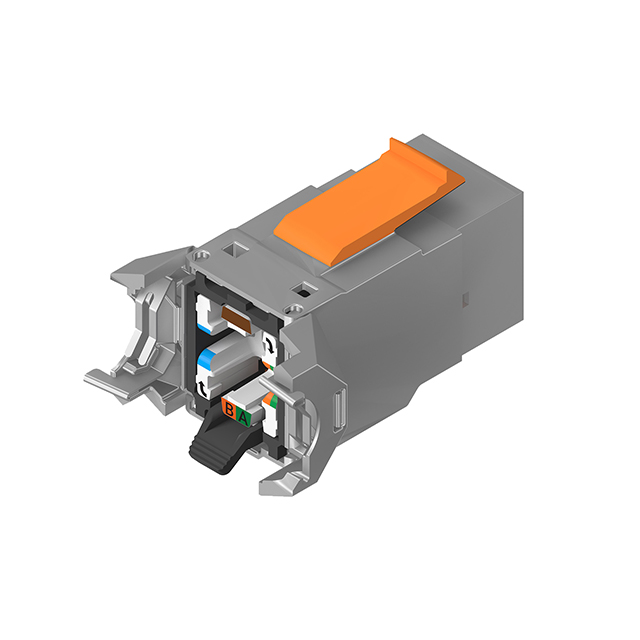

RV6IJ2SME-S1

Active

Belden Inc.

INDUS REVCONN CAT6 JACK METAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RV6IJ2SME-S1

Active

Belden Inc.

INDUS REVCONN CAT6 JACK METAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RV6IJ2SME-S1

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Nickel
Housing Material	Zinc Die Cast, Nickel Plated
LED Color	Does Not Contain LED
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Ratings	Cat6
Shielding	Shielded
Tab Direction	Down
Termination	IDC

RV6IJ2 Series

Part	Termination	Tab Direction	Contact Finish	LED Color	Number of Positions/Contacts	Shielding	Contact Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Number of Rows	Orientation	Ratings	Housing Material
Belden Inc. RV6IJ2UBK-B24	IDC	Down	Gold	Does Not Contain LED	8p8c (RJ45 Ethernet)	Unshielded	Nickel	Jack	-40 °C	70 °C	50 µin	1.27 µm	1	1	Straight	Cat6	Polybutylene Terephthalate (PBT) Glass Filled
Belden Inc. RV6IJ2UTE-S1	IDC	Down	Gold	Does Not Contain LED	8p8c (RJ45 Ethernet)	Unshielded	Nickel	Jack	-40 °C	70 °C	50 µin	1.27 µm	1	1	Straight	Cat6	Polybutylene Terephthalate (PBT) Glass Filled
Belden Inc. RV6IJ2UBK-S1	IDC	Down	Gold	Does Not Contain LED	8p8c (RJ45 Ethernet)	Unshielded	Nickel	Jack	-40 °C	70 °C	50 µin	1.27 µm	1	1	Straight	Cat6	Polybutylene Terephthalate (PBT) Glass Filled
Belden Inc. RV6IJ2SME-S1	IDC	Down	Gold	Does Not Contain LED	8p8c (RJ45 Ethernet)	Shielded	Nickel	Jack	-40 °C	70 °C	50 µin	1.27 µm	1	1	Straight	Cat6	Zinc Die Cast Nickel Plated
Belden Inc. RV6IJ2UBL-B24	IDC	Down	Gold	Does Not Contain LED	8p8c (RJ45 Ethernet)	Unshielded	Nickel	Jack	-40 °C	70 °C	50 µin	1.27 µm	1	1	Straight	Cat6	Polybutylene Terephthalate (PBT) Glass Filled
Belden Inc. RV6IJ2UOR-B24	IDC	Down	Gold	Does Not Contain LED	8p8c (RJ45 Ethernet)	Unshielded	Nickel	Jack	-40 °C	70 °C	50 µin	1.27 µm	1	1	Straight	Cat6	Polybutylene Terephthalate (PBT) Glass Filled
Belden Inc. RV6IJ2UEW-B24	IDC	Down	Gold	Does Not Contain LED	8p8c (RJ45 Ethernet)	Unshielded	Nickel	Jack	-40 °C	70 °C	50 µin	1.27 µm	1	1	Straight	Cat6	Polybutylene Terephthalate (PBT) Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 73.61
		10	$ 57.15
		25	$ 51.93
		50	$ 48.42
		100	$ 45.24

Description

General part information

RV6IJ2 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Shielded Cat6
