1-794073-1

Active

TE Connectivity AMP Connectors

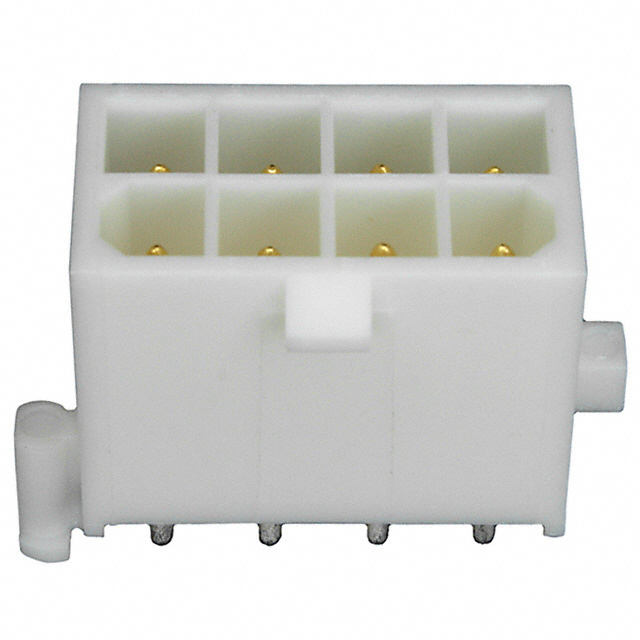

CONN HEADER VERT 8POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 8POS 4.14MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-794073-1	794073 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold, Tin-Lead
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	4.45 mm	4.45 mm
Contact Length - Post	0.175 in	0.175 in
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	13.5 mm	13.5 mm
Insulation Height	0.531 in	0.531 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

CONN HEADER VERT 8POS 4.14MM

Part	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Fastening Type	Number of Positions	Contact Shape	Material Flammability Rating	Current Rating (Amps)	Contact Material	Termination	Contact Type	Number of Rows	Applications	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Mounting Type	Style	Insulation Color
TE Connectivity AMP Connectors 1-794073-1	4.14 mm	0.163 in	13.5 mm	0.531 in	Nylon, Polyamide (PA)	150 Áin	3.81 Ám	Gold	Locking Ramp	8	Circular	UL94 V-0	Varies by Wire Gauge	Brass	Solder	Male Pin	2	General Purpose	All	4.45 mm	0.175 in	Tin	Header	4.14 mm	0.163 in	-20 C	105 ░C	600 VAC	30 Áin	0.76 Ám	Shrouded - 4 Wall	Through Hole	Board to Cable/Wire	White
TE Connectivity AMP Connectors 794073-1	4.14 mm	0.163 in	13.5 mm	0.531 in	Nylon, Polyamide (PA)	150 Áin	3.81 Ám	Tin-Lead	Locking Ramp	8	Circular	UL94 V-0	Varies by Wire Gauge	Brass	Solder	Male Pin	2	General Purpose	All	4.45 mm	0.175 in	Tin-Lead	Header	4.14 mm	0.163 in	-20 C	85 °C	600 VAC	150 Áin	3.81 Ám	Shrouded - 4 Wall	Through Hole	Board to Cable/Wire	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 8 position 0.163" (4.14mm)
