794073-1
ObsoleteTE Connectivity AMP Connectors

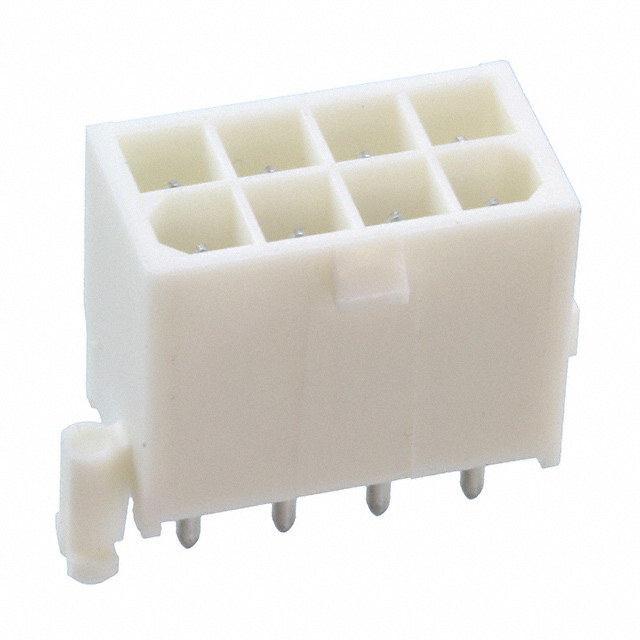

CONN HEADER VERT 8POS 4.14MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794073-1
ObsoleteTE Connectivity AMP Connectors
CONN HEADER VERT 8POS 4.14MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794073-1 | 794073 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Tin-Lead | Gold, Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 150 Áin | 30 - 150 Áin |
| Contact Finish Thickness - Mating | 3.81 Ám | 0.76 - 3.81 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Post | 4.45 mm | 4.45 mm |
| Contact Length - Post | 0.175 in | 0.175 in |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | White | White |
| Insulation Height | 13.5 mm | 13.5 mm |
| Insulation Height | 0.531 in | 0.531 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 8 | 8 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 - 105 ░C |
| Operating Temperature [Min] | -20 C | -20 C |
| Pitch - Mating | 4.14 mm | 4.14 mm |
| Pitch - Mating | 0.163 in | 0.163 in |
| Row Spacing - Mating | 4.14 mm | 4.14 mm |
| Row Spacing - Mating | 0.163 in | 0.163 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 600 VAC | 600 VAC |
794073 Series
CONN HEADER VERT 8POS 4.14MM
| Part | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Fastening Type | Number of Positions | Contact Shape | Material Flammability Rating | Current Rating (Amps) | Contact Material | Termination | Contact Type | Number of Rows | Applications | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Mounting Type | Style | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-794073-1 | 4.14 mm | 0.163 in | 13.5 mm | 0.531 in | Nylon, Polyamide (PA) | 150 Áin | 3.81 Ám | Gold | Locking Ramp | 8 | Circular | UL94 V-0 | Varies by Wire Gauge | Brass | Solder | Male Pin | 2 | General Purpose | All | 4.45 mm | 0.175 in | Tin | Header | 4.14 mm | 0.163 in | -20 C | 105 ░C | 600 VAC | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Through Hole | Board to Cable/Wire | White |
TE Connectivity AMP Connectors 794073-1 | 4.14 mm | 0.163 in | 13.5 mm | 0.531 in | Nylon, Polyamide (PA) | 150 Áin | 3.81 Ám | Tin-Lead | Locking Ramp | 8 | Circular | UL94 V-0 | Varies by Wire Gauge | Brass | Solder | Male Pin | 2 | General Purpose | All | 4.45 mm | 0.175 in | Tin-Lead | Header | 4.14 mm | 0.163 in | -20 C | 85 °C | 600 VAC | 150 Áin | 3.81 Ám | Shrouded - 4 Wall | Through Hole | Board to Cable/Wire | White |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.64 | |
| 10 | $ 2.19 | |||
| 100 | $ 1.81 | |||
| 500 | $ 1.59 | |||
| 1000 | $ 1.50 | |||
Description
General part information
794073 Series
Connector Header Through Hole 8 position 0.163" (4.14mm)
Documents
Technical documentation and resources
