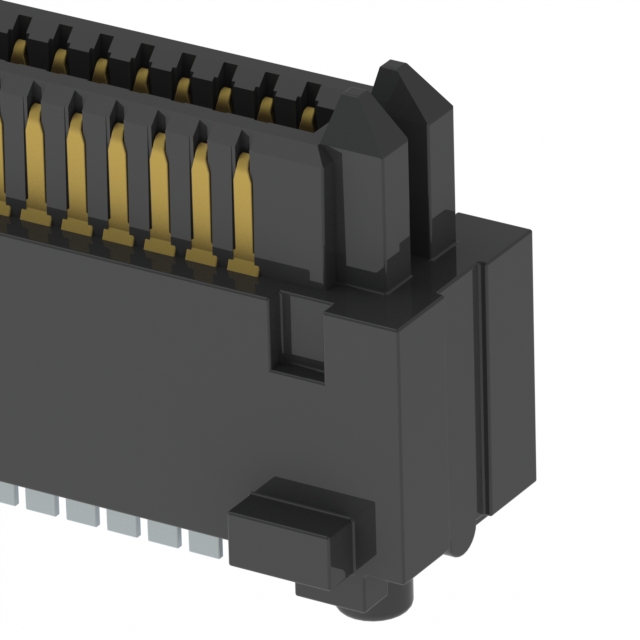

SEAM8-20-S05.0-S-04-2

Active

Samtec Inc.

CONN HD ARRAY PLUG 80P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SEAM8-S Print

SEAM8-20-S05.0-S-04-2

Active

Samtec Inc.

CONN HD ARRAY PLUG 80P SMD GOLD

Deep-Dive with AI

DocumentsDatasheet SEAM8-S Print

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAM8-20-S05.0-S-04-2

Connector Type	High Density Array, Male
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Height Above Board	0.297 in
Height Above Board	7.54 mm
Mated Stacking Heights	10 mm
Mounting Type	Surface Mount
Number of Positions	80
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

SEAM8-20 Series

Part	Features	Connector Type	Number of Positions	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Contact Finish	Mounting Type	Height Above Board [z]	Height Above Board [z]	Number of Rows
Samtec Inc. SEAM8-20-S05.0-S-04-2-K	Board Guide Pick and Place	High Density Array Male	80	10 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in	0.297 in	7.54 mm	Gold	Surface Mount
Samtec Inc. SEAM8-20-S02.0-S-04-2-K	Board Guide Pick and Place	High Density Array Male	80	7 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in			Gold	Surface Mount	4.55 mm	0.179 in
Samtec Inc. SEAM8-20-S05.0-S-04-3	Board Guide	High Density Array Male	80	10 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in	0.297 in	7.54 mm	Gold	Surface Mount
Samtec Inc. SEAM8-20-S02.0-S-10-2-GP	Board Guide Mating Flange	High Density Array Male		7 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in			Gold	Surface Mount	4.55 mm	0.179 in	10
Samtec Inc. SEAM8-20-S02.0-S-04-3	Board Guide	High Density Array Male	80	7 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in			Gold	Surface Mount	4.55 mm	0.179 in
Samtec Inc. SEAM8-20-S02.0-L-08-2	Board Guide	High Density Array Male	160	7 mm	0.25 Ám	10 Áin	0.8 mm	0.031 in			Gold	Surface Mount	4.55 mm	0.179 in	8
Samtec Inc. SEAM8-20-S02.0-S-08-2-K	Board Guide Pick and Place	High Density Array Male	160	7 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in			Gold	Surface Mount	4.55 mm	0.179 in	8
Samtec Inc. SEAM8-20-S05.0-S-04-2	Board Guide	High Density Array Male	80	10 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in	0.297 in	7.54 mm	Gold	Surface Mount
Samtec Inc. SEAM8-20-S02.0-S-08-2	Board Guide	High Density Array Male	160	7 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in			Gold	Surface Mount	4.55 mm	0.179 in	8
Samtec Inc. SEAM8-20-S05.0-S-10-2-K	Board Guide Pick and Place	High Density Array Male		10 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in	0.297 in	7.54 mm	Gold	Surface Mount			10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SEAM8-20 Series

80 Position Connector High Density Array, Male Surface Mount Gold
