SEAM8-20-S02.0-S-10-2-GP

Obsolete

Samtec Inc.

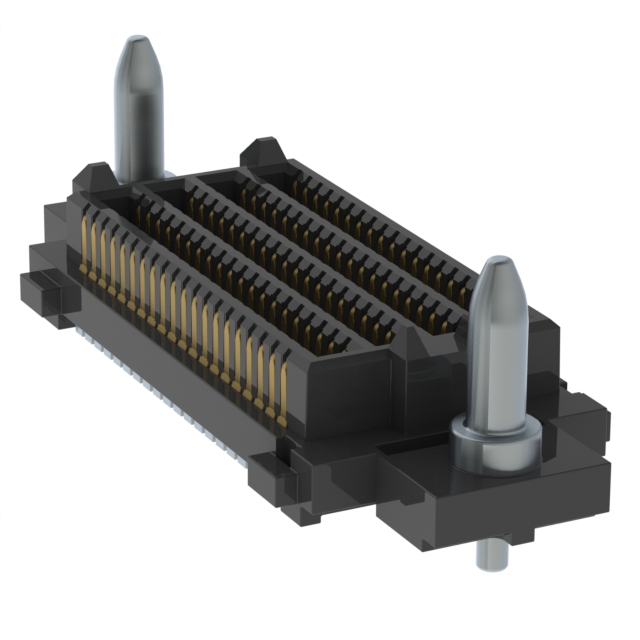

CONN HD ARRAY PLUG 200P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SEAM8-20-S02.0-S-10-2-GP

Obsolete

Samtec Inc.

CONN HD ARRAY PLUG 200P SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAM8-20-S02.0-S-10-2-GP

Connector Type	High Density Array, Male
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide, Mating Flange
Height Above Board [z]	4.55 mm
Height Above Board [z]	0.179 in
Mated Stacking Heights	7 mm
Mounting Type	Surface Mount
Number of Rows	10
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

SEAM8-20 Series

Part	Features	Connector Type	Number of Positions	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Contact Finish	Mounting Type	Height Above Board [z]	Height Above Board [z]	Number of Rows
Samtec Inc. SEAM8-20-S05.0-S-04-2-K	Board Guide Pick and Place	High Density Array Male	80	10 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in	0.297 in	7.54 mm	Gold	Surface Mount
Samtec Inc. SEAM8-20-S02.0-S-04-2-K	Board Guide Pick and Place	High Density Array Male	80	7 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in			Gold	Surface Mount	4.55 mm	0.179 in
Samtec Inc. SEAM8-20-S05.0-S-04-3	Board Guide	High Density Array Male	80	10 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in	0.297 in	7.54 mm	Gold	Surface Mount
Samtec Inc. SEAM8-20-S02.0-S-10-2-GP	Board Guide Mating Flange	High Density Array Male		7 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in			Gold	Surface Mount	4.55 mm	0.179 in	10
Samtec Inc. SEAM8-20-S02.0-S-04-3	Board Guide	High Density Array Male	80	7 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in			Gold	Surface Mount	4.55 mm	0.179 in
Samtec Inc. SEAM8-20-S02.0-L-08-2	Board Guide	High Density Array Male	160	7 mm	0.25 Ám	10 Áin	0.8 mm	0.031 in			Gold	Surface Mount	4.55 mm	0.179 in	8
Samtec Inc. SEAM8-20-S02.0-S-08-2-K	Board Guide Pick and Place	High Density Array Male	160	7 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in			Gold	Surface Mount	4.55 mm	0.179 in	8
Samtec Inc. SEAM8-20-S05.0-S-04-2	Board Guide	High Density Array Male	80	10 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in	0.297 in	7.54 mm	Gold	Surface Mount
Samtec Inc. SEAM8-20-S02.0-S-08-2	Board Guide	High Density Array Male	160	7 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in			Gold	Surface Mount	4.55 mm	0.179 in	8
Samtec Inc. SEAM8-20-S05.0-S-10-2-K	Board Guide Pick and Place	High Density Array Male		10 mm	0.76 Ám	30 Áin	0.8 mm	0.031 in	0.297 in	7.54 mm	Gold	Surface Mount			10
