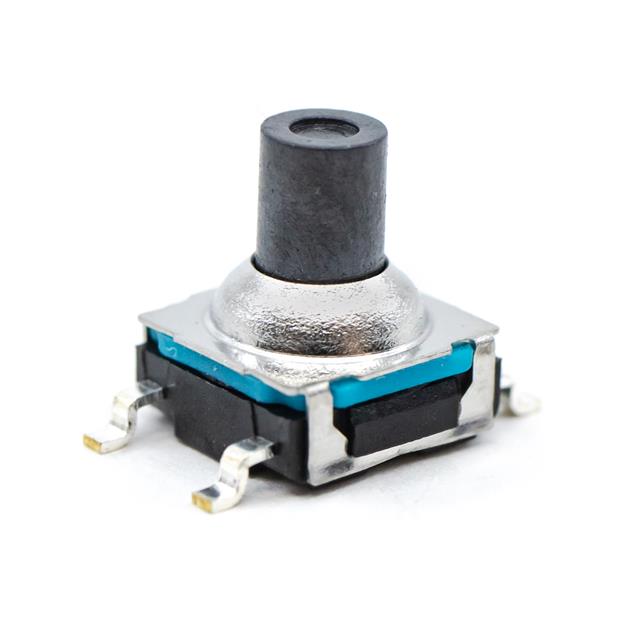

TL6170AF250QG

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TL6170AF250QG	TL6170 Series

Actuator Height off PCB, Vertical	-	7.7 mm
Actuator Height off PCB, Vertical [z]	7.2 mm	7.2 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Surface Mount	Surface Mount
Operating Force	0.25 kgf	0.25 - 180 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	6.3 mm	6.3 mm
Outline [y]	6.3 mm	6.3 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.4 mm	0.4 mm
Termination Style	Gull Wing	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Outline [y]	Outline [x]	Ingress Protection	Mounting Type	Contact Rating @ Voltage	Termination Style	Operating Force	Actuator Orientation	Circuit	Actuator Height off PCB, Vertical	Switch Function	Illumination	Actuator Height off PCB, Vertical [z]
E-Switch TL6170BF180QG	Standard	85 °C	-40 °C	0.4 mm	6.3 mm	6.3 mm	IP67 - Dust Tight, Waterproof	Surface Mount	0.05 A, 12 VDC	Gull Wing	180 gf	Top Actuated	SPST-NO	7.7 mm	Off-Mom	Non-Illuminated
E-Switch TL6170AF250QG	Standard	85 °C	-40 °C	0.4 mm	6.3 mm	6.3 mm	IP67 - Dust Tight, Waterproof	Surface Mount	0.05 A, 12 VDC	Gull Wing	0.25 kgf	Top Actuated	SPST-NO		Off-Mom	Non-Illuminated	7.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
