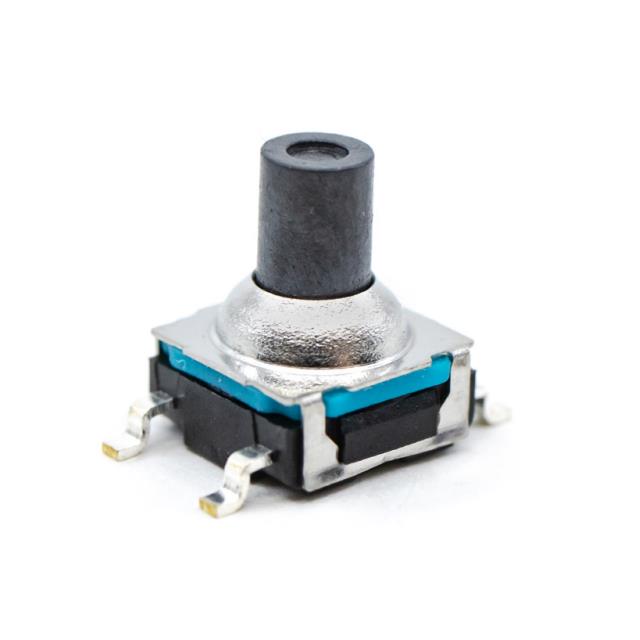

TL6170BF180QG

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3500	$ 0.31

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TL6170BF180QG	TL6170 Series

Actuator Height off PCB, Vertical	7.7 mm	7.7 mm
Actuator Height off PCB, Vertical	-	7.2 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Surface Mount	Surface Mount
Operating Force	180 gf	0.25 - 180 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	6.3 mm	6.3 mm
Outline [y]	6.3 mm	6.3 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.4 mm	0.4 mm
Termination Style	Gull Wing	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Outline [y]	Outline [x]	Ingress Protection	Mounting Type	Contact Rating @ Voltage	Termination Style	Operating Force	Actuator Orientation	Circuit	Actuator Height off PCB, Vertical	Switch Function	Illumination	Actuator Height off PCB, Vertical [z]
E-Switch TL6170BF180QG	Standard	85 °C	-40 °C	0.4 mm	6.3 mm	6.3 mm	IP67 - Dust Tight, Waterproof	Surface Mount	0.05 A, 12 VDC	Gull Wing	180 gf	Top Actuated	SPST-NO	7.7 mm	Off-Mom	Non-Illuminated
E-Switch TL6170AF250QG	Standard	85 °C	-40 °C	0.4 mm	6.3 mm	6.3 mm	IP67 - Dust Tight, Waterproof	Surface Mount	0.05 A, 12 VDC	Gull Wing	0.25 kgf	Top Actuated	SPST-NO		Off-Mom	Non-Illuminated	7.2 mm
