SR99S01VBNN04G7

Active

METZ CONNECT USA Inc.

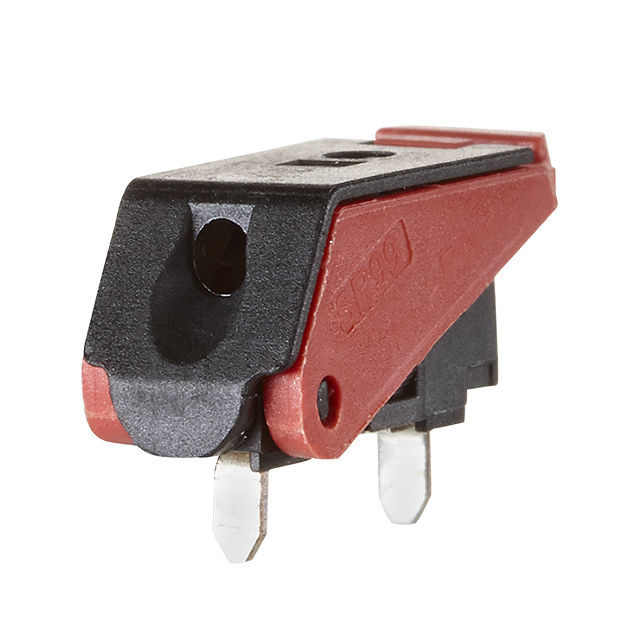

TERM BLOCK 1POS SIDE ENTRY PCB

Deep-Dive with AI

Search across all available documentation for this part.

SR99S01VBNN04G7

Active

METZ CONNECT USA Inc.

TERM BLOCK 1POS SIDE ENTRY PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.26
		10	$ 0.79
		25	$ 0.67
		50	$ 0.61
		100	$ 0.59
		250	$ 0.50
	Tape & Reel (TR)	750	$ 0.45
		1500	$ 0.38
		3750	$ 0.34
		5250	$ 0.34
		18750	$ 0.32

Description

General part information

SR99S01VB Series

1 Position Wire to Board Terminal Block Horizontal with Board Through Hole

Documents

Technical documentation and resources

No documents available

Specification	SR99S01VBNN04G7	SR99S01VB Series

Clamp Material - Plating	Steel	Steel
Color	Red	Red, Blue, Yellow, Green, Black, White, Brown, Gray
Contact Material - Plating	Copper Alloy - Tin Plated	Copper Alloy - Tin Plated
Current	9 A	9 A
Features	Push Button Actuated	Push Button Actuated
Housing Material	-	Polyamide (PA6T), Nylon 6T
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Positions Per Level	1	1
Voltage	300 V	300 V
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	16 AWG	16 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp	Screwless - Spring Cage, Tension Clamp

Part	Voltage	Housing Material	Mounting Type	Mating Orientation	Wire Termination	Features	Current	Wire Gauge [Min]	Wire Gauge [Max]	Number of Levels	Clamp Material - Plating	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating	Color
METZ CONNECT USA Inc. SR99S01VBNN06G7	300 V	Polyamide (PA6T), Nylon 6T	Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated
METZ CONNECT USA Inc. SR99S01VBNN04G7	300 V		Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Red
METZ CONNECT USA Inc. SR99S01VBNN0004	300 V	Polyamide (PA6T), Nylon 6T	Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Red
METZ CONNECT USA Inc. SR99S01VBNN05G7	300 V		Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Blue
METZ CONNECT USA Inc. SR99S01VBNN02G7	300 V		Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Yellow
METZ CONNECT USA Inc. SR99S01VBNN03G7	300 V		Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Green
METZ CONNECT USA Inc. SR99S01VBNN00G7	300 V		Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Black
METZ CONNECT USA Inc. SR99S01VBNN01G7	300 V		Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	White
METZ CONNECT USA Inc. SR99S01VBNN08G7	300 V	Polyamide (PA6T), Nylon 6T	Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Brown
METZ CONNECT USA Inc. SR99S01VBNN07G7	300 V	Polyamide (PA6T), Nylon 6T	Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Gray
