SR99S01VBNN08G7

Active

METZ CONNECT USA Inc.

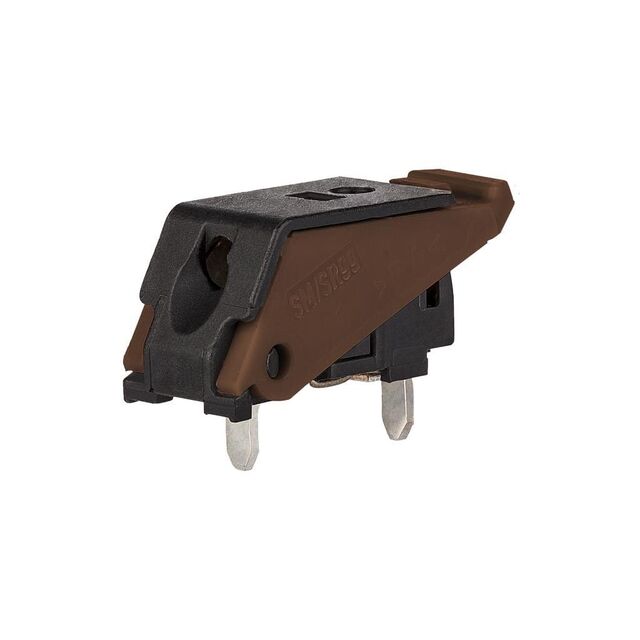

TERM BLOCK 1POS SIDE ENTRY PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SR99S01VBNN08G7

Active

METZ CONNECT USA Inc.

TERM BLOCK 1POS SIDE ENTRY PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SR99S01VBNN08G7	SR99S01VB Series

Clamp Material - Plating	Steel	Steel
Color	Brown	Red, Blue, Yellow, Green, Black, White, Brown, Gray
Contact Material - Plating	Copper Alloy - Tin Plated	Copper Alloy - Tin Plated
Current	9 A	9 A
Features	Push Button Actuated	Push Button Actuated
Housing Material	Polyamide (PA6T), Nylon 6T	Polyamide (PA6T), Nylon 6T
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Positions Per Level	1	1
Voltage	300 V	300 V
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	16 AWG	16 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp	Screwless - Spring Cage, Tension Clamp

SR99S01VB Series

TERM BLOCK 1POS SIDE ENTRY PCB

Part	Voltage	Housing Material	Mounting Type	Mating Orientation	Wire Termination	Features	Current	Wire Gauge [Min]	Wire Gauge [Max]	Number of Levels	Clamp Material - Plating	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating	Color
METZ CONNECT USA Inc. SR99S01VBNN06G7	300 V	Polyamide (PA6T), Nylon 6T	Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated
METZ CONNECT USA Inc. SR99S01VBNN04G7	300 V		Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Red
METZ CONNECT USA Inc. SR99S01VBNN0004	300 V	Polyamide (PA6T), Nylon 6T	Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Red
METZ CONNECT USA Inc. SR99S01VBNN05G7	300 V		Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Blue
METZ CONNECT USA Inc. SR99S01VBNN02G7	300 V		Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Yellow
METZ CONNECT USA Inc. SR99S01VBNN03G7	300 V		Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Green
METZ CONNECT USA Inc. SR99S01VBNN00G7	300 V		Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Black
METZ CONNECT USA Inc. SR99S01VBNN01G7	300 V		Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	White
METZ CONNECT USA Inc. SR99S01VBNN08G7	300 V	Polyamide (PA6T), Nylon 6T	Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Brown
METZ CONNECT USA Inc. SR99S01VBNN07G7	300 V	Polyamide (PA6T), Nylon 6T	Through Hole	Horizontal with Board	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	9 A	16 AWG	24 AWG	1	Steel	1	-40 °C	105 ░C	Copper Alloy - Tin Plated	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	750	$ 0.47

Description

General part information

SR99S01VB Series

1 Position Wire to Board Terminal Block Horizontal with Board Through Hole
