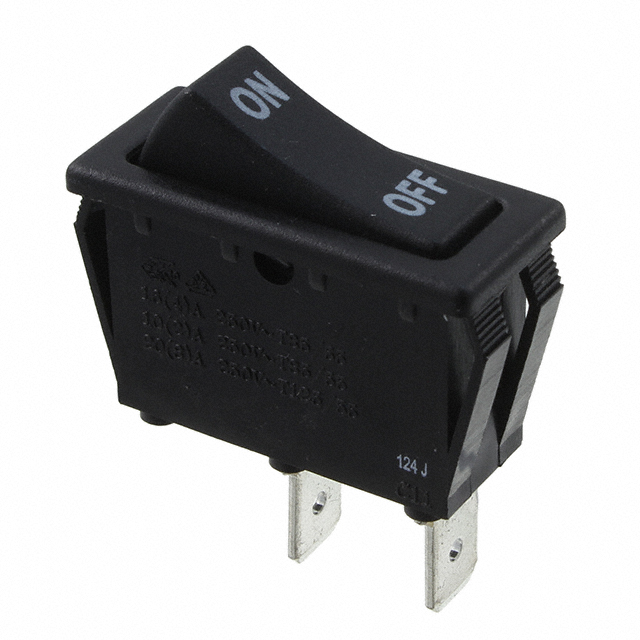

RB141D1123

Active

E-Switch

SWITCH ROCKER SPST 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER SPST 20A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Color - Actuator/Cap	Actuator Type	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Actuator Marking	Electrical Life	Mounting Type	Approval Agency	Illumination Type, Color	Illumination Voltage (Nominal)
E-Switch RB143D1100	SPDT	Black	Concave (Curved)	20 A	125 V	On-On	30 mm	11 mm	Quick Connect - 0.250" (6.3mm)	No Marking	10000 Cycles	Panel Mount Snap-In	cULus
E-Switch RB141D1100-219	SPST	Black	Concave (Curved) - Illuminated	20 A	125 V	On-Off	30 mm	11 mm	Quick Connect - 0.250" (6.3mm)	No Marking	10000 Cycles	Panel Mount Snap-In	cULus	Incandescent Red	18 VDC
E-Switch RB141D1123	SPST	Black	Concave (Curved)	20 A	125 V	On-Off	30 mm	11 mm	Quick Connect - 0.250" (6.3mm)	ON OFF Vertical	10000 Cycles	Panel Mount Snap-In	cULus
E-Switch RB141D1000-116	SPST	Red	Concave (Curved) - Illuminated	20 A	125 V	On-Off	30 mm	11 mm	Quick Connect - 0.250" (6.3mm)	No Marking	10000 Cycles	Panel Mount Snap-In	cULus	Neon Red	125 VAC
E-Switch RB141D1121	SPST	Black	Concave (Curved)	20 A	125 V	On-Off	30 mm	11 mm	Quick Connect - 0.250" (6.3mm)	O -	10000 Cycles	Panel Mount Snap-In	cULus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 20A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
