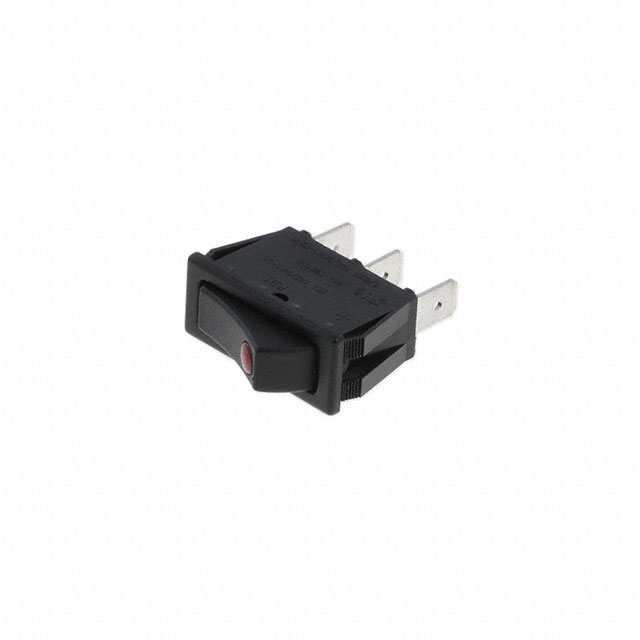

Specification	RB141D1100-219

Actuator Marking	No Marking
Actuator Type	Concave (Curved), Illuminated
Approval Agency	cULus
Circuit	SPST
Color	Red
Color - Actuator/Cap	Black
Current Rating	20 A
Electrical Life (Cycles)	10000 Cycles
Illumination Type	Incandescent
Illumination Voltage (Nominal)	18 V
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Length	30 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	11 mm
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Off
Termination Style	Quick Connect
Voltage Rating - AC	125 V

RB141D1 Series

Part	Color - Actuator/Cap	Operating Temperature (Min)	Operating Temperature (Max)	Approval Agency	Actuator Type	Actuator Marking	Circuit	Current Rating	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Mounting Type	Switch Function	Voltage Rating - AC	Quick Connect Size (0.187")	Termination Style	Quick Connect Size (0.250")	Illumination Type	Color	Illumination Voltage (Nominal)
E-Switch RB1C5E112Z73	Black	-20 °C	65 °C	cULus	Concave (Curved)	No Marking	SPDT	16 A	11 mm	Rectangular	30 mm	Panel Mount Snap-In	On-Off-Mom	125 V	0.187 in	Quick Connect
E-Switch RB141D1011-137	Clear	-20 °C	65 °C	cULus	Concave (Curved) Illuminated	O	SPST	20 A	11 mm	Rectangular	30 mm	Panel Mount Snap-In	On-Off	125 V		Quick Connect	0.25 in	Neon	Green	250 V
E-Switch RB143C1100	Black	-20 °C	65 °C	cULus	Concave (Curved)	No Marking	SPDT	15 A	11 mm	Rectangular	30 mm	Panel Mount Snap-In	On-On	125 V		Quick Connect	0.25 in
