MN8-38RX-BOTTLE
Active3M

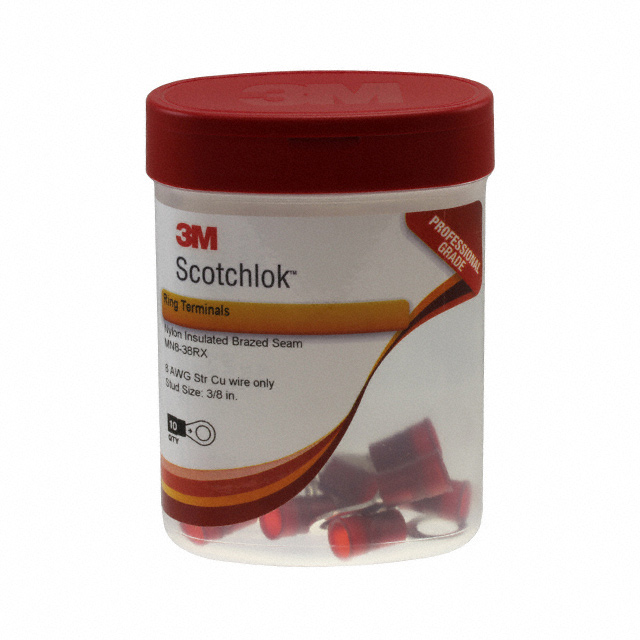

CONNRINGCIRC8AWG#3/8 10PC/BOTTLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MN8-38RX-BOTTLE
Active3M
CONNRINGCIRC8AWG#3/8 10PC/BOTTLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MN8-38RX-BOTTLE | MN8 Series |
|---|---|---|
| Color | Red | Red |
| Contact Finish | Tin | Tin |
| Contact Material | ETP, Copper | ETP, Copper |
| Features | Brazed Seam | Brazed Seam |
| Insulation | Insulated | Insulated |
| Insulation Diameter [diameter] | 8.64 mm | 8.64 mm |
| Insulation Diameter [diameter] | 0.34 in | 0.34 in |
| Length - Overall [x] | 1.38 in | 1.26 - 1.72 in |
| Length - Overall [x] | 35.05 mm | 32 - 43.69 mm |
| Material - Insulation | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Stud/Tab Size | 3/8 Stud | 3/8 Stud, 1/2 Stud |
| Stud/Tab Size | - | 0.25 - 10 Stud |
| Terminal Type | Circular | Circular |
| Termination | Crimp | Crimp |
| Thickness | 50 mils | 50 mils |
| Thickness | 0.05 in | 0.05 in |
| Width - Outer Edges | - | 0.47 in |
| Width - Outer Edges | - | 11.94 mm |
| Width - Outer Edges | - | 20.57 mm |
| Width - Outer Edges | - | 0.81 in |
| Width - Outer Edges [x] | 14.99 mm | 14.99 mm |
| Width - Outer Edges [x] | 0.59 in | 0.59 in |
| Wire Gauge | 8 AWG | 8 AWG |
MN8 Series
CONN RING CIRC 8AWG #1/4 10PC
| Part | Stud/Tab Size | Terminal Type | Insulation | Contact Material | Mounting Type | Length - Overall [x] | Length - Overall [x] | Color | Width - Outer Edges [y] | Width - Outer Edges [y] | Features | Thickness | Thickness | Contact Finish | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Termination | Wire Gauge | Material - Insulation | Width - Outer Edges [x] | Width - Outer Edges [x] | Stud/Tab Size | Width - Outer Edges | Width - Outer Edges |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.25 Stud | Circular | Insulated | Copper, ETP | Free Hanging (In-Line) | 1.26 in | 32 mm | Red | 0.47 in | 11.94 mm | Brazed Seam | 50 mils | 0.05 in | Tin | 8.64 mm | 0.34 in | Crimp | 8 AWG | Nylon, Polyamide (PA) | ||||||
0.3125 Stud | Circular | Insulated | Copper, ETP | Free Hanging (In-Line) | 1.38 in | 35.05 mm | Red | Brazed Seam | 50 mils | 0.05 in | Tin | 8.64 mm | 0.34 in | Crimp | 8 AWG | Nylon, Polyamide (PA) | 14.99 mm | 0.59 in | ||||||
0.25 Stud | Circular | Insulated | Copper, ETP | Free Hanging (In-Line) | 1.26 in | 32 mm | Red | 0.47 in | 11.94 mm | Brazed Seam | 50 mils | 0.05 in | Tin | 8.64 mm | 0.34 in | Crimp | 8 AWG | Nylon, Polyamide (PA) | ||||||
Circular | Insulated | Copper, ETP | Free Hanging (In-Line) | 1.38 in | 35.05 mm | Red | Brazed Seam | 50 mils | 0.05 in | Tin | 8.64 mm | 0.34 in | Crimp | 8 AWG | Nylon, Polyamide (PA) | 14.99 mm | 0.59 in | 3/8 Stud | ||||||
Circular | Insulated | Copper, ETP | Free Hanging (In-Line) | 1.72 in | 43.69 mm | Red | Brazed Seam | 50 mils | 0.05 in | Tin | 8.64 mm | 0.34 in | Crimp | 8 AWG | Nylon, Polyamide (PA) | 1/2 Stud | 20.57 mm | 0.81 in | ||||||
3M MN8-38RK | Circular | Insulated | Copper, ETP | Free Hanging (In-Line) | 1.38 in | 35.05 mm | Red | Brazed Seam | 50 mils | 0.05 in | Tin | 8.64 mm | 0.34 in | Crimp | 8 AWG | Nylon, Polyamide (PA) | 14.99 mm | 0.59 in | 3/8 Stud | |||||
10 Stud | Circular | Insulated | Copper, ETP | Free Hanging (In-Line) | 1.26 in | 32 mm | Red | 0.47 in | 11.94 mm | Brazed Seam | 50 mils | 0.05 in | Tin | 8.64 mm | 0.34 in | Crimp | 8 AWG | Nylon, Polyamide (PA) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.25 | |
| 10 | $ 17.73 | |||
| 25 | $ 16.96 | |||
| 50 | $ 16.41 | |||
| 100 | $ 15.87 | |||
| 250 | $ 14.99 | |||
| 500 | $ 14.55 | |||
Description
General part information
MN8 Series
Ring Terminal Connector 3/8 Stud Circular 8 AWG Crimp
