MN8-14R/SK

Active

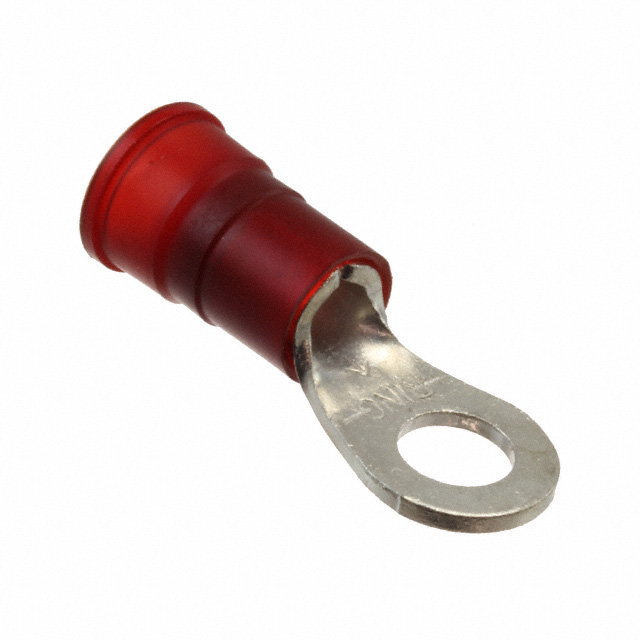

CONN RING CIRC 8AWG #1/4 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MN8-14R/SK

Active

CONN RING CIRC 8AWG #1/4 CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.33
		10	$ 1.02
		25	$ 0.91
		50	$ 0.84
		100	$ 0.78
		250	$ 0.71
		500	$ 0.65
		1000	$ 0.61
		2500	$ 0.55

Description

General part information

MN8 Series

Ring Terminal Connector 1/4 Stud Circular 8 AWG Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MN8-14R/SK	MN8 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Brazed Seam	Brazed Seam
Insulation	Insulated	Insulated
Insulation Diameter [diameter]	8.64 mm	8.64 mm
Insulation Diameter [diameter]	0.34 in	0.34 in
Length - Overall [x]	1.26 in	1.26 - 1.72 in
Length - Overall [x]	32 mm	32 - 43.69 mm
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud	0.25 - 10 Stud
Stud/Tab Size	-	3/8 Stud, 1/2 Stud
Terminal Type	Circular	Circular
Termination	Crimp	Crimp
Thickness	50 mils	50 mils
Thickness	0.05 in	0.05 in
Width - Outer Edges	-	14.99 mm
Width - Outer Edges	-	0.59 in
Width - Outer Edges	-	20.57 mm
Width - Outer Edges	-	0.81 in
Width - Outer Edges [y]	0.47 in	0.47 in
Width - Outer Edges [y]	11.94 mm	11.94 mm
Wire Gauge	8 AWG	8 AWG

MN8 Series

CONN RING CIRC 8AWG #1/4 10PC

Part	Stud/Tab Size	Terminal Type	Insulation	Contact Material	Mounting Type	Length - Overall [x]	Length - Overall [x]	Color	Width - Outer Edges [y]	Width - Outer Edges [y]	Features	Thickness	Thickness	Contact Finish	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Termination	Wire Gauge	Material - Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges
3M MN8-14R/SX-BOTTLE	0.25 Stud	Circular	Insulated	Copper, ETP	Free Hanging (In-Line)	1.26 in	32 mm	Red	0.47 in	11.94 mm	Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon, Polyamide (PA)
3M MN8-516RK	0.3125 Stud	Circular	Insulated	Copper, ETP	Free Hanging (In-Line)	1.38 in	35.05 mm	Red			Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon, Polyamide (PA)	14.99 mm	0.59 in
3M MN8-14R/SK	0.25 Stud	Circular	Insulated	Copper, ETP	Free Hanging (In-Line)	1.26 in	32 mm	Red	0.47 in	11.94 mm	Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon, Polyamide (PA)
3M MN8-38RX-BOTTLE		Circular	Insulated	Copper, ETP	Free Hanging (In-Line)	1.38 in	35.05 mm	Red			Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon, Polyamide (PA)	14.99 mm	0.59 in	3/8 Stud
3M MN8-12R/SK		Circular	Insulated	Copper, ETP	Free Hanging (In-Line)	1.72 in	43.69 mm	Red			Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon, Polyamide (PA)			1/2 Stud	20.57 mm	0.81 in
3M MN8-38RK		Circular	Insulated	Copper, ETP	Free Hanging (In-Line)	1.38 in	35.05 mm	Red			Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon, Polyamide (PA)	14.99 mm	0.59 in	3/8 Stud
3M MN8-10R/SK	10 Stud	Circular	Insulated	Copper, ETP	Free Hanging (In-Line)	1.26 in	32 mm	Red	0.47 in	11.94 mm	Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon, Polyamide (PA)
