MN8-14R/SX-BOTTLE

Active

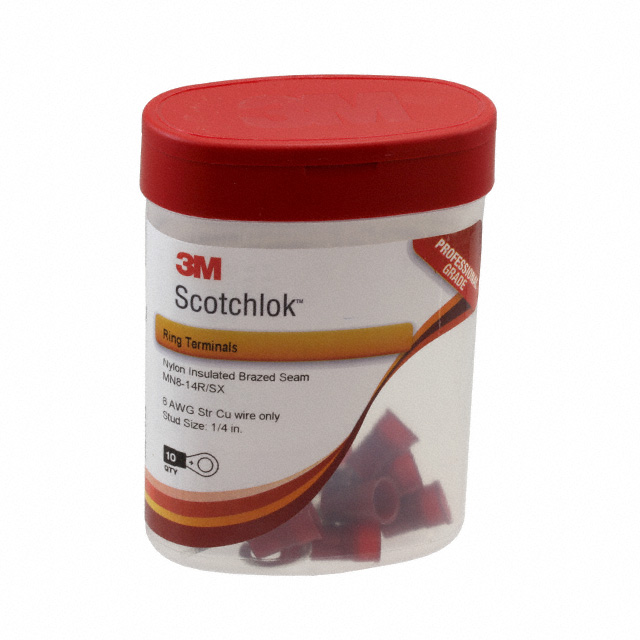

CONN RING CIRC 8AWG #1/4 10PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMN8-xxR(SK,SX,K)Datasheet

MN8-14R/SX-BOTTLE

Active

CONN RING CIRC 8AWG #1/4 10PC

Deep-Dive with AI

DocumentsMN8-xxR(SK,SX,K)Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 65.44
		10	$ 50.77
		25	$ 46.12
		50	$ 42.98
		100	$ 40.14
		250	$ 36.80

Description

General part information

MN8 Series

Ring Terminal Connector 1/4 Stud Circular 8 AWG Crimp

Documents

Technical documentation and resources

MN8-xxR(SK,SX,K)

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MN8-14R/SX-BOTTLE	MN8 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Brazed Seam	Brazed Seam
Insulation	Insulated	Insulated
Insulation Diameter [diameter]	8.64 mm	8.64 mm
Insulation Diameter [diameter]	0.34 in	0.34 in
Length - Overall [x]	1.26 in	1.26 - 1.72 in
Length - Overall [x]	32 mm	32 - 43.69 mm
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud	0.25 - 10 Stud
Stud/Tab Size	-	3/8 Stud, 1/2 Stud
Terminal Type	Circular	Circular
Termination	Crimp	Crimp
Thickness	50 mils	50 mils
Thickness	0.05 in	0.05 in
Width - Outer Edges	-	14.99 mm
Width - Outer Edges	-	0.59 in
Width - Outer Edges	-	20.57 mm
Width - Outer Edges	-	0.81 in
Width - Outer Edges [y]	0.47 in	0.47 in
Width - Outer Edges [y]	11.94 mm	11.94 mm
Wire Gauge	8 AWG	8 AWG

MN8 Series

CONN RING CIRC 8AWG #1/4 10PC

Part	Stud/Tab Size	Terminal Type	Insulation	Contact Material	Mounting Type	Length - Overall [x]	Length - Overall [x]	Color	Width - Outer Edges [y]	Width - Outer Edges [y]	Features	Thickness	Thickness	Contact Finish	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Termination	Wire Gauge	Material - Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges
3M MN8-14R/SX-BOTTLE	0.25 Stud	Circular	Insulated	Copper, ETP	Free Hanging (In-Line)	1.26 in	32 mm	Red	0.47 in	11.94 mm	Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon, Polyamide (PA)
3M MN8-516RK	0.3125 Stud	Circular	Insulated	Copper, ETP	Free Hanging (In-Line)	1.38 in	35.05 mm	Red			Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon, Polyamide (PA)	14.99 mm	0.59 in
3M MN8-14R/SK	0.25 Stud	Circular	Insulated	Copper, ETP	Free Hanging (In-Line)	1.26 in	32 mm	Red	0.47 in	11.94 mm	Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon, Polyamide (PA)
3M MN8-38RX-BOTTLE		Circular	Insulated	Copper, ETP	Free Hanging (In-Line)	1.38 in	35.05 mm	Red			Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon, Polyamide (PA)	14.99 mm	0.59 in	3/8 Stud
3M MN8-12R/SK		Circular	Insulated	Copper, ETP	Free Hanging (In-Line)	1.72 in	43.69 mm	Red			Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon, Polyamide (PA)			1/2 Stud	20.57 mm	0.81 in
3M MN8-38RK		Circular	Insulated	Copper, ETP	Free Hanging (In-Line)	1.38 in	35.05 mm	Red			Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon, Polyamide (PA)	14.99 mm	0.59 in	3/8 Stud
3M MN8-10R/SK	10 Stud	Circular	Insulated	Copper, ETP	Free Hanging (In-Line)	1.26 in	32 mm	Red	0.47 in	11.94 mm	Brazed Seam	50 mils	0.05 in	Tin	8.64 mm	0.34 in	Crimp	8 AWG	Nylon, Polyamide (PA)
