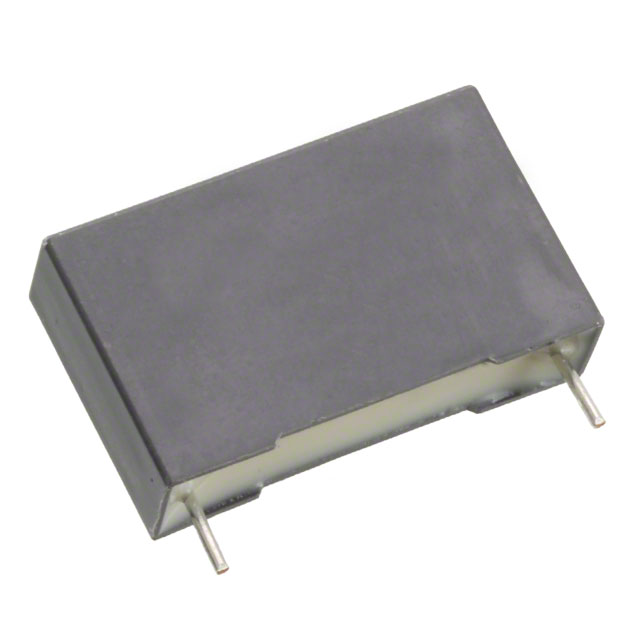

R46KN347045N0M

Active

KEMET

CAP FILM 0.47UF 20% 560VDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

R46KN347045N0M

Active

KEMET

CAP FILM 0.47UF 20% 560VDC RAD

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R46KN347045N0M

Applications	EMI, RFI Suppression
Capacitance	0.47 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	16.1 mm
Height - Seated (Max) [Max]	0.634 in
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	1.043 in
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	275 V
Voltage Rating - DC	560 V

R46KN Series

Part	Termination	Ratings	Applications	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Capacitance	Tolerance	Mounting Type	Voltage Rating - DC	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R46KN347045N0M	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	7 mm	0.276 in	1.043 in	26.5 mm	0.47 µF	20 %	Through Hole	560 V	Radial	16.1 mm	0.634 in	Metallized Polypropylene (PP)	275 V
KEMET R46KN347050N0K	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	7 mm	0.276 in	1.043 in	26.5 mm	0.47 µF	10 %	Through Hole	560 V	Radial	16.1 mm	0.634 in	Metallized Polypropylene (PP)	275 V
KEMET R46KN333045N0M	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	6 mm	0.236 in	1.043 in	26.5 mm	0.33 µF	20 %	Through Hole	560 V	Radial	15.1 mm	0.594 in	Metallized Polypropylene (PP)	275 V
KEMET R46KN422040P0M	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	13 mm	0.512 in	1.043 in	26.5 mm	2.2 µF	20 %	Through Hole	560 V	Radial			Metallized Polypropylene (PP)	275 V	0.87 in	22.1 mm
KEMET R46KN3330GYM1K	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	6 mm	0.236 in	1.043 in	26.5 mm	0.33 µF	10 %	Through Hole	560 V	Radial	15.1 mm	0.594 in	Metallized Polypropylene (PP)	275 V
KEMET R46KN322000H1U	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	125 °C	6 mm	0.236 in	1.043 in	26.5 mm	0.22 µF		Through Hole	560 V	Radial	15.1 mm	0.594 in	Metallized Polypropylene (PP)	275 V
KEMET R46KN368050M2K	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	10 mm	0.394 in	1.043 in	26.5 mm	680 nF	10 %	Through Hole	560 V	Radial			Metallized Polypropylene (PP)	275 V	0.732 in	18.6 mm
KEMET R46KN415000P0M	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	11 mm	0.433 in	1.043 in	26.5 mm	1.5 µF	20 %	Through Hole	560 V	Radial			Metallized Polypropylene (PP)	275 V
KEMET R46KN4150JHP1M	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	10 mm	0.394 in	1.043 in	26.5 mm	1.5 µF	20 %	Through Hole	560 V	Radial			Metallized Polypropylene (PP)	275 V	0.732 in	18.6 mm
KEMET R46KN347040H1M	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	125 °C	10 mm	0.394 in	1.043 in	26.5 mm	0.47 µF	20 %	Through Hole	560 V	Radial			Metallized Polypropylene (PP)	275 V	0.732 in	18.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.00
		10	$ 0.72
		500	$ 0.42
		1000	$ 0.36
		5000	$ 0.32
		10000	$ 0.31
Newark	Each	500	$ 0.39
		1000	$ 0.35
		2500	$ 0.32

Description

General part information

R46KN Series

0.47 µF Film Capacitor 275V 560V Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

Datasheet

Product Change Notice EN

Datasheet
