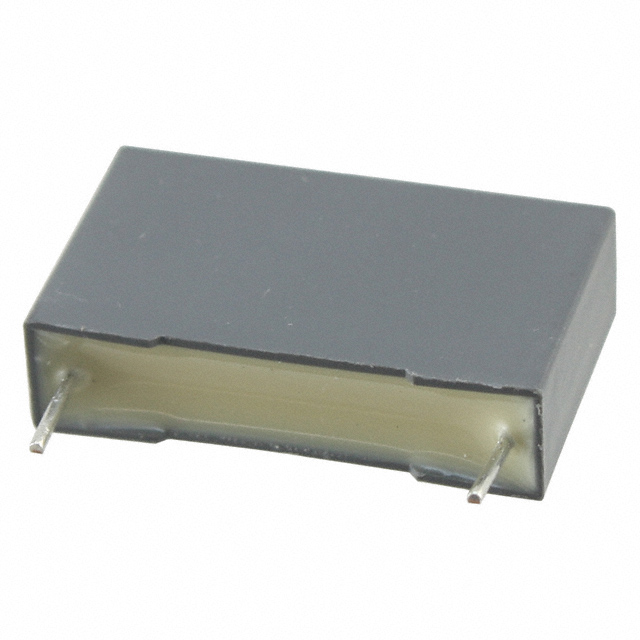

R46KN347050N0K

Active

KEMET

FILM CAPACITOR, R46 SERIES, 0.47 F, 10%, PP (POLYPROPYLENE), 275 VAC ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR46KN347050N0K Datasheet +3

R46KN347050N0K

Active

KEMET

FILM CAPACITOR, R46 SERIES, 0.47 F, 10%, PP (POLYPROPYLENE), 275 VAC ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsR46KN347050N0K Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R46KN347050N0K

Applications	EMI, RFI Suppression
Capacitance	0.47 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	16.1 mm
Height - Seated (Max) [Max]	0.634 in
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	1.043 in
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	275 V
Voltage Rating - DC	560 V

R46KN Series

Part	Termination	Ratings	Applications	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Capacitance	Tolerance	Mounting Type	Voltage Rating - DC	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R46KN347045N0M	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	7 mm	0.276 in	1.043 in	26.5 mm	0.47 µF	20 %	Through Hole	560 V	Radial	16.1 mm	0.634 in	Metallized Polypropylene (PP)	275 V
KEMET R46KN347050N0K	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	7 mm	0.276 in	1.043 in	26.5 mm	0.47 µF	10 %	Through Hole	560 V	Radial	16.1 mm	0.634 in	Metallized Polypropylene (PP)	275 V
KEMET R46KN333045N0M	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	6 mm	0.236 in	1.043 in	26.5 mm	0.33 µF	20 %	Through Hole	560 V	Radial	15.1 mm	0.594 in	Metallized Polypropylene (PP)	275 V
KEMET R46KN422040P0M	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	13 mm	0.512 in	1.043 in	26.5 mm	2.2 µF	20 %	Through Hole	560 V	Radial			Metallized Polypropylene (PP)	275 V	0.87 in	22.1 mm
KEMET R46KN3330GYM1K	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	6 mm	0.236 in	1.043 in	26.5 mm	0.33 µF	10 %	Through Hole	560 V	Radial	15.1 mm	0.594 in	Metallized Polypropylene (PP)	275 V
KEMET R46KN322000H1U	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	125 °C	6 mm	0.236 in	1.043 in	26.5 mm	0.22 µF		Through Hole	560 V	Radial	15.1 mm	0.594 in	Metallized Polypropylene (PP)	275 V
KEMET R46KN368050M2K	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	10 mm	0.394 in	1.043 in	26.5 mm	680 nF	10 %	Through Hole	560 V	Radial			Metallized Polypropylene (PP)	275 V	0.732 in	18.6 mm
KEMET R46KN415000P0M	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	11 mm	0.433 in	1.043 in	26.5 mm	1.5 µF	20 %	Through Hole	560 V	Radial			Metallized Polypropylene (PP)	275 V
KEMET R46KN4150JHP1M	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	110 °C	10 mm	0.394 in	1.043 in	26.5 mm	1.5 µF	20 %	Through Hole	560 V	Radial			Metallized Polypropylene (PP)	275 V	0.732 in	18.6 mm
KEMET R46KN347040H1M	PC Pins	X2	EMI RFI Suppression	22.5 mm	0.886 in	-40 °C	125 °C	10 mm	0.394 in	1.043 in	26.5 mm	0.47 µF	20 %	Through Hole	560 V	Radial			Metallized Polypropylene (PP)	275 V	0.732 in	18.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.52
		10	$ 0.96
		50	$ 0.73
		100	$ 0.66
		500	$ 0.54
		1000	$ 0.50
		2500	$ 0.46
		5000	$ 0.44
Newark	Each	10	$ 0.85
		25	$ 0.83
		50	$ 0.80
		100	$ 0.78
		500	$ 0.56
		1000	$ 0.55
		2500	$ 0.53

Description

General part information

R46KN Series

0.47 µF Film Capacitor 275V 560V Polypropylene (PP), Metallized Radial
