IL-G-14P-S3T2-SA
ActiveJAE Electronics

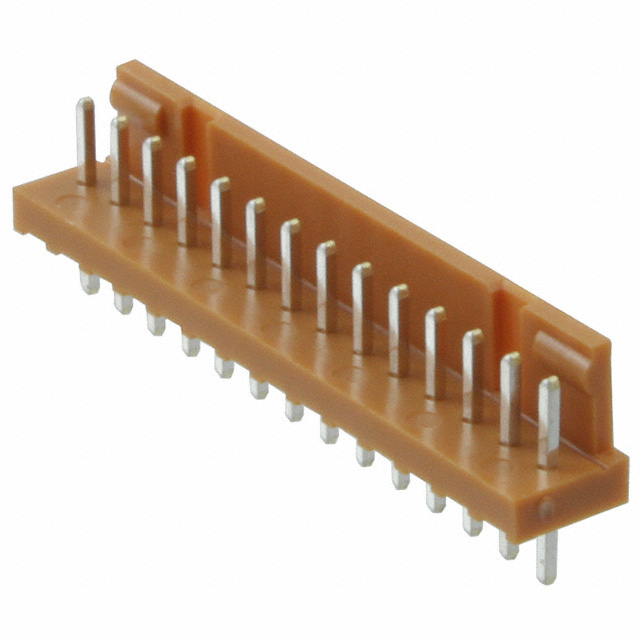

CONN HEADER VERT 14POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IL-G-14P-S3T2-SA
ActiveJAE Electronics
CONN HEADER VERT 14POS 2.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IL-G-14P-S3T2-SA |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 4 mm |
| Contact Length - Mating | 0.157 in |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Friction Lock |
| Insulation Color | Brown |
| Insulation Height | 0.28 in |
| Insulation Height | 7.1 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mated Stacking Heights | 10 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 0.378 in |
| Overall Contact Length | 9.6 mm |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 1 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
