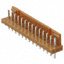

IL-G-14P Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER VERT 14POS 2.5MM
| Part | Overall Contact Length | Current Rating (Per Contact) | Mounting Type | Contact Finish - Mating | Insulation Material | Style | Shrouding | Operating Temperature (Min) | Operating Temperature (Max) | Connector Type | Insulation Color | Fastening Type | Number of Positions | Contact Length - Mating | Number of Rows | Material Flammability Rating | Number of Positions Loaded | Pitch - Mating | Termination | Insulation Height | Contact Material | Contact Shape | Contact Type | Contact Finish - Post | Contact Length - Post | Mated Stacking Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 0.378 in | 3 A | Through Hole | Tin | Nylon 6/6 Polyamide (PA66) | Board Cable/Wire | Shrouded - 1 Wall | -40 °C | 85 °C | Header | Brown | Friction Lock | 14 | 0.157 in | 1 | UL94 V-0 | All | 0.098 in | Solder | 0.28 in | Brass | Square | Male Pin | Tin | 0.138 in | 10 mm |
