EB147A-02-C
ActiveAdam Tech

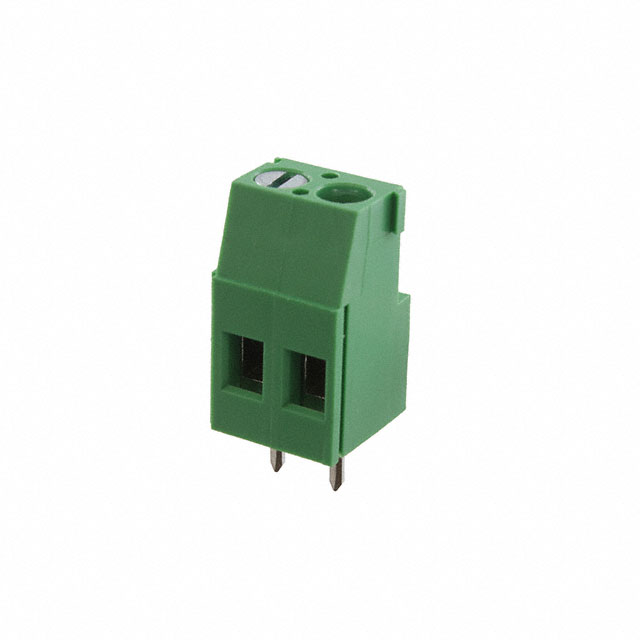

CONN TERMINAL BLOCK 2 POS 5MM SOLDER ST THRU-HOLE 16A BOX
Deep-Dive with AI
Search across all available documentation for this part.
EB147A-02-C
ActiveAdam Tech
CONN TERMINAL BLOCK 2 POS 5MM SOLDER ST THRU-HOLE 16A BOX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EB147A-02-C |
|---|---|
| Clamp Material - Plating | Brass - Nickel Plated |
| Color | Green |
| Contact Material - Plating [custom] | Brass - Tin Plated |
| Current | 16 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 2 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M3 |
| Torque - Screw | 4.4 Lb-In |
| Torque - Screw | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
EB147A Series
| Part | Number of Levels | Positions Per Level | Operating Temperature [Min] | Operating Temperature [Max] | Wire Termination | Current | Color | Voltage | Screw Thread | Clamp Material - Plating | Features | Contact Material - Plating [custom] | Pitch [x] | Pitch [x] | Mounting Type | Torque - Screw | Torque - Screw | Mating Orientation | Wire Gauge [Max] | Wire Gauge [Min] | Screw Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | 1 | 2 | -40 °C | 105 ░C | Screw - Rising Cage Clamp | 16 A | Green | 300 V | M3 | Brass - Nickel Plated | Interlocking (Side) | Brass - Tin Plated | 0.2 in | 5.08 mm | Through Hole | 4.4 Lb-In | 0.5 Nm | Horizontal with Board | 26 AWG | 12 AWG | Steel Zinc Plated |
Adam Tech | 1 | 2 | -40 °C | 105 ░C | Screw - Rising Cage Clamp | 16 A | Green | 300 V | M3 | Brass - Nickel Plated | Interlocking (Side) | Brass - Tin Plated | 0.197 in | 5 mm | Through Hole | 4.4 Lb-In | 0.5 Nm | Horizontal with Board | 26 AWG | 12 AWG | Steel Zinc Plated |
Adam Tech | 1 | 3 | -40 °C | 105 ░C | Screw - Rising Cage Clamp | 16 A | Green | 300 V | M3 | Brass - Nickel Plated | Interlocking (Side) | Brass - Tin Plated | 0.2 in | 5.08 mm | Through Hole | 4.4 Lb-In | 0.5 Nm | Horizontal with Board | 26 AWG | 12 AWG | Steel Zinc Plated |
Adam Tech | 1 | 6 | -40 °C | 105 ░C | Screw - Rising Cage Clamp | 16 A | Green | 300 V | M3 | Brass - Nickel Plated | Interlocking (Side) | Brass - Tin Plated | 0.2 in | 5.08 mm | Through Hole | 4.4 Lb-In | 0.5 Nm | Horizontal with Board | 26 AWG | 12 AWG | Steel Zinc Plated |
Adam Tech | 1 | 2 | -40 °C | 105 ░C | Screw - Rising Cage Clamp | 16 A | Green | 300 V | M3 | Brass - Nickel Plated | Interlocking (Side) | Brass - Tin Plated | 0.295 in | 7.5 mm | Through Hole | 4.4 Lb-In | 0.5 Nm | Horizontal with Board | 26 AWG | 12 AWG | Steel Zinc Plated |
Adam Tech | 1 | 6 | -40 °C | 105 ░C | Screw - Rising Cage Clamp | 16 A | Green | 300 V | M3 | Brass - Nickel Plated | Interlocking (Side) | Brass - Tin Plated | 0.295 in | 7.5 mm | Through Hole | 4.4 Lb-In | 0.5 Nm | Horizontal with Board | 26 AWG | 12 AWG | Steel Zinc Plated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.02 | |
| 10 | $ 0.52 | |||
| 25 | $ 0.42 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.25 | |||
| 5000 | $ 0.23 | |||
Description
General part information
EB147A Series
2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
