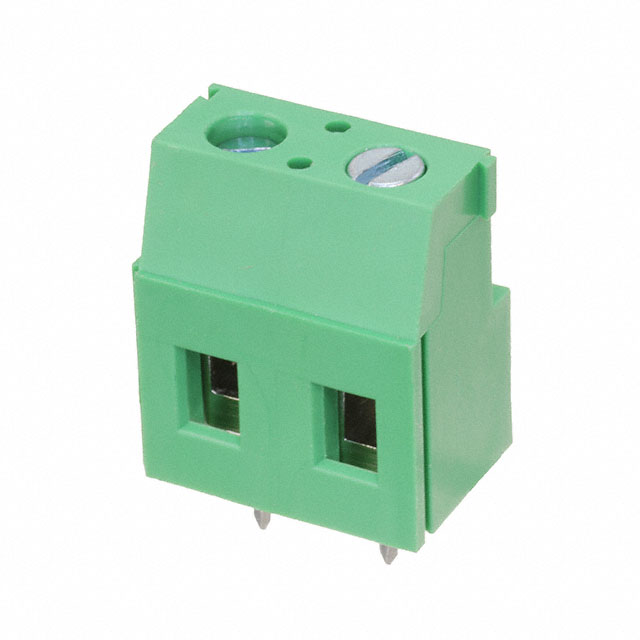

EB147A-02-M
ActiveAdam Tech
EURO BLOCK, 2 POSITION
Deep-Dive with AI
Search across all available documentation for this part.
EB147A-02-M
ActiveAdam Tech
EURO BLOCK, 2 POSITION
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EB147A-02-M |
|---|---|
| Clamp Material - Plating | Brass - Nickel Plated |
| Color | Green |
| Contact Material - Plating [custom] | Brass - Tin Plated |
| Current | 16 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.295 in |
| Pitch [x] | 7.5 mm |
| Positions Per Level | 2 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M3 |
| Torque - Screw | 4.4 Lb-In |
| Torque - Screw | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.05 | |
| 10 | $ 0.54 | |||
| 25 | $ 0.44 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.26 | |||
| 5000 | $ 0.24 | |||
Description
General part information
EB147A Series
2 Position Wire to Board Terminal Block Horizontal with Board 0.295" (7.50mm) Through Hole
