Technical Specifications
Parameters and characteristics for this part
| Specification | PAF600F280-24/T |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 25 A |
| Efficiency | 91 % |
| Features | OCP, OVP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Full Brick |
| Power (Watts) | 600 W |
| Size / Dimension [x] | 4.6 " |
| Size / Dimension [x] | 116.8 mm |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [y] | 61 mm |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 400 V |
| Voltage - Input (Min) [Min] | 200 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 [Max] | 28.8 V |
| Voltage - Output 1 [Min] | 14.4 V |
PAF600 Series
| Part | Current - Output (Max) [Max] | Features | Voltage - Input (Max) [Max] | Power (Watts) | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Package / Case | Voltage - Input (Min) [Min] | Control Features | Voltage - Isolation | Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Mounting Type | Applications | Number of Outputs | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDK-LAMBDA | 50 A | OCP OVP Remote On/Off | 400 V | 600 W | 12 V | 100 °C | -40 °C | 90 % | Full Brick | 200 V | Active Low Enable | 3000 V | Isolated Module | 0.5 in | 4.6 " | 116.8 mm | 12.7 mm | 2.4 " | 61 mm | Through Hole | ITE (Commercial) | 1 | ||
TDK-LAMBDA | 21.5 A | OCP OVP Remote On/Off | 36 V | 600 W | 28 V | 100 °C | -40 °C | 90 % | Full Brick | 19 V | Active Low Enable | 1.5 kV | Isolated Module | 0.5 in | 4.6 " | 116.8 mm | 12.7 mm | 2.4 " | 61 mm | Through Hole | ITE (Commercial) | 1 | ||
TDK-LAMBDA | 50 A | OCP OVP Remote On/Off | 36 V | 600 W | 12 V | 100 °C | -40 °C | 90 % | Full Brick | 20 V | Active Low Enable | 1.5 kV | Isolated Module | 0.5 in | 4.6 " | 116.8 mm | 12.7 mm | 2.4 " | 61 mm | Through Hole | ITE (Commercial) | 1 | ||
TDK-LAMBDA | 25 A | OCP OVP Remote On/Off | 400 V | 600 W | 100 °C | -40 °C | 91 % | Full Brick | 200 V | Active Low Enable | 3000 V | Isolated Module | 0.5 in | 4.6 " | 116.8 mm | 12.7 mm | 2.4 " | 61 mm | Through Hole | ITE (Commercial) | 1 | 28.8 V | 14.4 V | |
TDK-LAMBDA | 12.5 A | OCP OVP Remote On/Off | 400 V | 600 W | 100 °C | -40 °C | 91 % | Full Brick | 200 V | Active Low Enable | 3000 V | Isolated Module | 0.5 in | 4.6 " | 116.8 mm | 12.7 mm | 2.4 " | 61 mm | Through Hole | ITE (Commercial) | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PAF600 Series

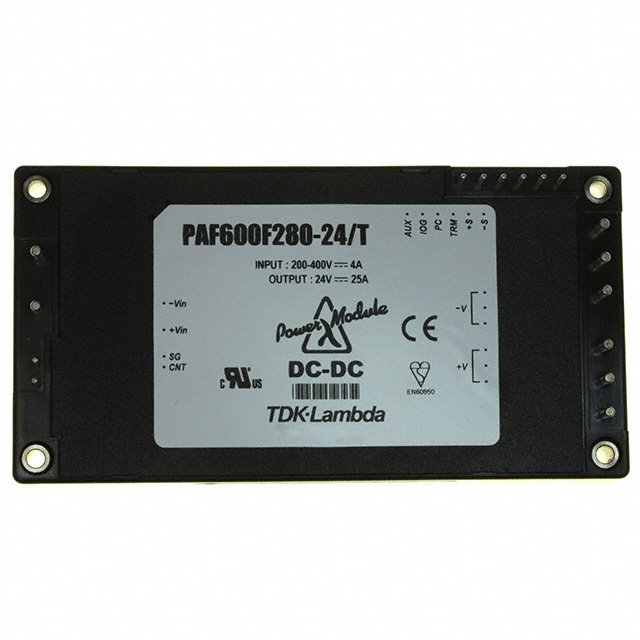

PAF600F280-24/T is a PAF-F280 series input full brick DC-DC converter. It includes overcurrent and overvoltage protection. Application includes industrial, COTS, test, communication. Certified by IEC/UL/CSA/EN62368-1, 60950-1.
