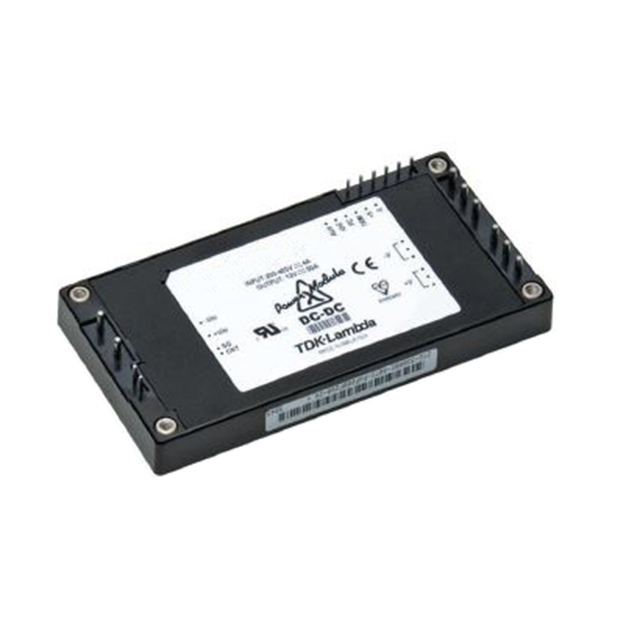

PAF600F280-12

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, FULL BRICK, 600 W, 1 OUTPUT, 12 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Safety Data Sheet EN +3

PAF600F280-12

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, FULL BRICK, 600 W, 1 OUTPUT, 12 V

Deep-Dive with AI

DocumentsDatasheet Safety Data Sheet EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PAF600F280-12

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	50 A
Efficiency	90 %
Features	OCP, OVP, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Full Brick
Power (Watts)	600 W
Size / Dimension [x]	4.6 "
Size / Dimension [x]	116.8 mm
Size / Dimension [y]	2.4 "
Size / Dimension [y]	61 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	400 V
Voltage - Input (Min) [Min]	200 V
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

PAF600 Series

Part	Current - Output (Max) [Max]	Features	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Package / Case	Voltage - Input (Min) [Min]	Control Features	Voltage - Isolation	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Applications	Number of Outputs	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]
TDK-LAMBDA PAF600F280-12	50 A	OCP OVP Remote On/Off	400 V	600 W	12 V	100 °C	-40 °C	90 %	Full Brick	200 V	Active Low Enable	3000 V	Isolated Module	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	Through Hole	ITE (Commercial)	1
TDK-LAMBDA PAF600F24-28	21.5 A	OCP OVP Remote On/Off	36 V	600 W	28 V	100 °C	-40 °C	90 %	Full Brick	19 V	Active Low Enable	1.5 kV	Isolated Module	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	Through Hole	ITE (Commercial)	1
TDK-LAMBDA PAF600F24-12	50 A	OCP OVP Remote On/Off	36 V	600 W	12 V	100 °C	-40 °C	90 %	Full Brick	20 V	Active Low Enable	1.5 kV	Isolated Module	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	Through Hole	ITE (Commercial)	1
TDK-LAMBDA PAF600F280-24/T	25 A	OCP OVP Remote On/Off	400 V	600 W		100 °C	-40 °C	91 %	Full Brick	200 V	Active Low Enable	3000 V	Isolated Module	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	Through Hole	ITE (Commercial)	1	28.8 V	14.4 V
TDK-LAMBDA PAF600F280-48/T	12.5 A	OCP OVP Remote On/Off	400 V	600 W		100 °C	-40 °C	91 %	Full Brick	200 V	Active Low Enable	3000 V	Isolated Module	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	Through Hole	ITE (Commercial)	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 252.58
Newark	Each	1	$ 252.58
		10	$ 234.96
		25	$ 215.18
		50	$ 211.69

Description

General part information

PAF600 Series

PAF600F280-12 is a PAF-F280 series input full brick DC-DC converter. It includes overcurrent and overvoltage protection. Application includes industrial, COTS, test, communication. Certified by IEC/UL/CSA/EN62368-1, 60950-1.
