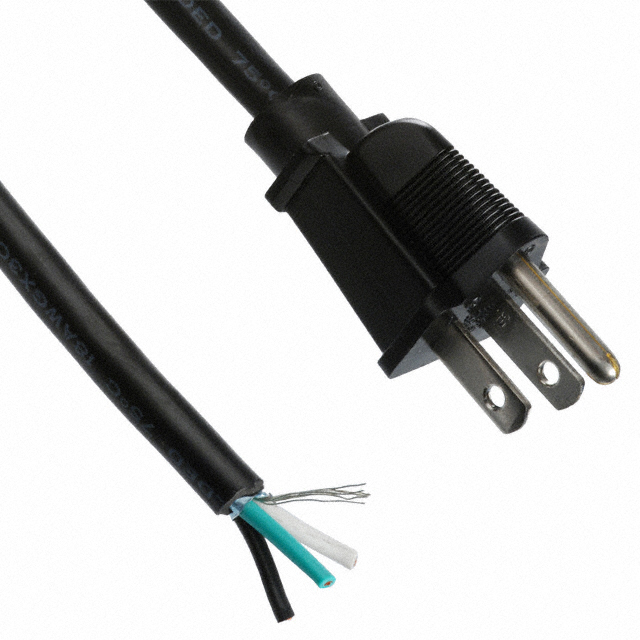

Specification	AK500-OE-8-2

1st Connector	NEMA 5-15P
2nd Connector	Cable
Approval Agency Marking	UL
Approved Countries	United States
Color	Black
Cord Type	SJT
Current Rating	10 A
Features	Drain Wire
Length	6.56 ft
Number of Conductors	3
Operating Temperature	105 °C
Shielding	Shielded
Style	Leads, Male Pins (Blades)
Voltage Rating	125 V
Wire Gauge	18 AWG

AK500-OE Series

Part	Style	Shielding	1st Connector	Approved Countries	Color	Number of Conductors	Cord Type	Length	Current Rating	2nd Connector	Wire Gauge	Voltage Rating	Operating Temperature	Approval Agency Marking	Features
Assmann WSW Components AK500-OE-12-9F	Leads Male Pins (Blades)	Unshielded	NEMA 1-15P Polarized	United States	Black	2	SPT-1	9 ft	10 A	Cable	18 AWG	125 V	60 °C	UL
Assmann WSW Components AK500-OE-13-8F	Leads Male Pins (Blades)	Unshielded	NEMA 1-15P Polarized	United States	Black	2	SPT-2	96 in	10 A	Cable	18 AWG	125 V	60 °C	UL
Assmann WSW Components AK500-OE-13-6F	Leads Male Pins (Blades)	Unshielded	NEMA 1-15P Polarized	United States	Black	2	SPT-2	6 ft	10 A	Cable	18 AWG	125 V	60 °C	UL
Assmann WSW Components AK500-OE-11-1	Female Sockets (Slots) Male Pins (Blades)	Unshielded	IEC 320-C14	United States	Black	3	SVT	3.28 ft	10 A	IEC 320-C13	18 AWG	250 V	60 °C	UL
Assmann WSW Components AK500-OE-13-NP-8F	Leads Male Pins (Blades)	Unshielded	NEMA 1-15P	United States	Black	2	SPT-2	96 in	10 A	Cable	18 AWG	125 V	60 °C	UL
Assmann WSW Components AK500-OE-8-2	Leads Male Pins (Blades)	Shielded	NEMA 5-15P	United States	Black	3	SJT	6.56 ft	10 A	Cable	18 AWG	125 V	105 °C	UL	Drain Wire
Assmann WSW Components AK500-OE-11-.5	Female Sockets (Slots) Male Pins (Blades)	Unshielded	IEC 320-C14	United States	Black	3	SVT	1.64 ft	10 A	IEC 320-C13	18 AWG	250 V	60 °C	UL
Assmann WSW Components AK500-OE-5-3	Leads Male Pins (Blades)	Shielded	NEMA 5-15P	United States	Black	3	SVT	9.84 ft	10 A	Cable	18 AWG	125 V	60 °C	UL	Drain Wire
Assmann WSW Components AK500-OE-7-1.5	Leads Male Pins (Blades)	Shielded	NEMA 5-15P	United States	Black	3	SVT	4.92 ft	10 A	Cable	18 AWG	125 V	105 °C	UL	Drain Wire
Assmann WSW Components AK500-OE-5-1	Leads Male Pins (Blades)	Shielded	NEMA 5-15P	United States	Black	3	SVT	3.28 ft	10 A	Cable	18 AWG	125 V	60 °C	UL	Drain Wire
