AK500-OE-5-3

Active

Assmann WSW Components

CABLE ASSEMBLY AC POWER 3M NEMA 5-15P 3 POS M 18AWG

Search across all available documentation for this part.

Active

Assmann WSW Components

CABLE ASSEMBLY AC POWER 3M NEMA 5-15P 3 POS M 18AWG

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Approved Countries	Approval Agency Marking	Shielding	2nd Connector	Number of Conductors	Operating Temperature	Cord Type	1st Connector	Style	Current Rating (Amps)	Color	Wire Gauge	Length	Length	Length [x]	Length [x]	Features
Assmann WSW Components AK500-OE-12-9F	125 VDC	United States	UL	Unshielded	Cable	2	60 °C	SPT-1	NEMA 1-15P Polarized	Male Pins (Blades) to Leads	10 A	Black	18 AWG	2.74 m	9 '
Assmann WSW Components AK500-OE-13-8F	125 VDC	United States	UL	Unshielded	Cable	2	60 °C	SPT-2	NEMA 1-15P Polarized	Male Pins (Blades) to Leads	10 A	Black	18 AWG			2.44 m	8 ft
Assmann WSW Components AK500-OE-11-1	250 VDC	United States	UL	Unshielded		3	60 °C	SVT	IEC 320-C14	Female Sockets Male Pins	10 A	Black	18 AWG			1 m	3.28 ft
Assmann WSW Components AK500-OE-13-NP-8F	125 VDC	United States	UL	Unshielded	Cable	2	60 °C	SPT-2	NEMA 1-15P	Male Pins (Blades) to Leads	10 A	Black	18 AWG			2.44 m	8 ft
Assmann WSW Components AK500-OE-8-2	125 VDC	United States	UL	Shielded	Cable	3	105 C	SJT	NEMA 5-15P	Male Pins (Blades) to Leads	10 A	Black	18 AWG			2 m	6.56 ft	Drain Wire
Assmann WSW Components AK500-OE-5-3	125 VDC	United States	UL	Shielded	Cable	3	60 °C	SVT	NEMA 5-15P	Male Pins (Blades) to Leads	10 A	Black	18 AWG			3 m	9.84 ft	Drain Wire
Assmann WSW Components AK500-OE-7-1.5	125 VDC	United States	UL	Shielded	Cable	3	105 C	SVT	NEMA 5-15P	Male Pins (Blades) to Leads	10 A	Black	18 AWG	1.5 m	4.92 '			Drain Wire
Assmann WSW Components AK500-OE-5-1	125 VDC	United States	UL	Shielded	Cable	3	60 °C	SVT	NEMA 5-15P	Male Pins (Blades) to Leads	10 A	Black	18 AWG			1 m	3.28 ft	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

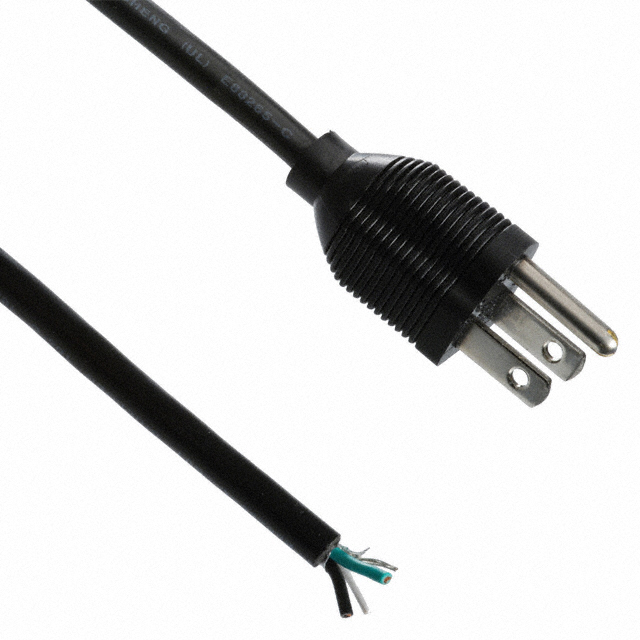

9.84' (3.00m) Power Cord Black NEMA 5-15P To Cable SVT

Technical documentation and resources
