8723 060U1000

Active

Belden Inc.

MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 2 PAIR, 22 AWG, 0.325 MM², 1000 FT, 304.8 M

Find alt

Alpha

8723 060U1000

Active

Belden Inc.

MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 2 PAIR, 22 AWG, 0.325 MM², 1000 FT, 304.8 M

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

8723 Series

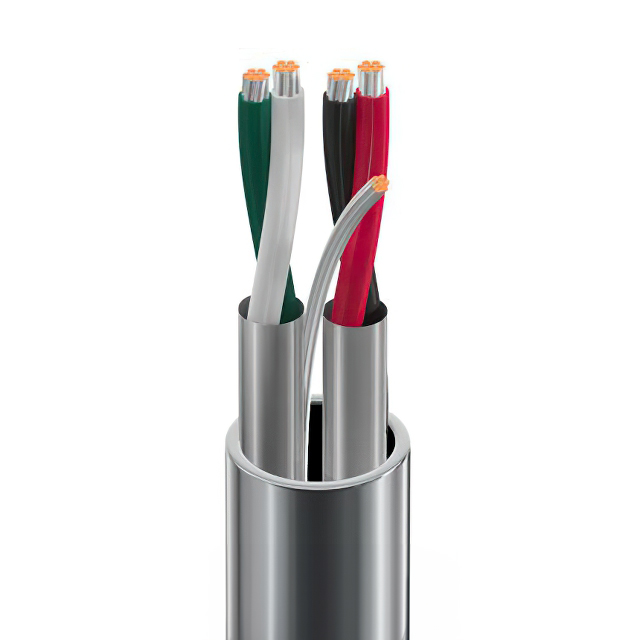

The 8723 060U1000 is a 2-pair Multi-conductor Cable with tinned-copper conductors, polypropylene insulation, twisted-pair, individually Beldfoil® shielded (100% coverage) and PVC jacket.

Technical Specifications

Parameters and characteristics for this part

Specification	8723 060U1000

Cable Type	Multi-Pair
Conductor Arrangement	Twisted
Conductor Insulation	Polypropylene (PP)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	30
Jacket (Insulation) Diameter	0.16 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket Color	Chrome
Length	1000 ft
Number of Conductors	4
Number of Conductors - Pair	2
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-20 °C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation, Control, Audio
Voltage	300 V
Wire Gauge	22 AWG

8723 Series

Part	Cable Type	Features	Jacket (Insulation) Diameter	Conductor Strand Gauge	Conductor Strand Count	Length	Operating Temperature (Min)	Operating Temperature (Max)	Number of Conductors	Conductor Arrangement	Number of Conductors - Pair	Jacket (Insulation) Thickness	Shield Type	Jacket Color	Conductor Insulation	Wire Gauge	Jacket (Insulation) Material	Conductor Material	Shield Material	Shield Coverage	Voltage	Usage	Length
Belden Inc. 8723 060100	Multi-Pair	Drain Wire	0.16 in	30	7 Strands	100 ft	-20 °C	75 °C	4	Twisted	2	0.02 in	Foil	Chrome	Polypropylene (PP)	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	Aluminum	100 %
Belden Inc. 8723 0602000	Multi-Pair		0.16 in	30	7 Strands	2000 ft	-20 °C	75 °C	4	Twisted	2	0.02 in	Foil	Chrome	Polypropylene (PP)	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	Aluminum	100 %	300 V	Audio Control Instrumentation
Belden Inc. 8723 06010001	Multi-Pair		0.16 in	30	7 Strands	10000 ft	-20 °C	75 °C	4	Twisted	2	0.02 in	Foil	Chrome	Polypropylene (PP)	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	Aluminum	100 %	300 V	Audio Control Instrumentation
Belden Inc. 8723 0603280	Multi-Pair		0.16 in	30	7 Strands	3281 ft	-20 °C	75 °C	4	Twisted	2	0.02 in	Foil	Chrome	Polypropylene (PP)	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	Aluminum	100 %	300 V	Audio Control Instrumentation
Belden Inc. 8723 060U1000	Multi-Pair		0.16 in	30	7 Strands	1000 ft	-20 °C	75 °C	4	Twisted	2	0.02 in	Foil	Chrome	Polypropylene (PP)	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	Aluminum	100 %	300 V	Audio Control Instrumentation
Belden Inc. 8723 0601640	Multi-Pair		0.16 in	30	7 Strands	1640.4 ft	-20 °C	75 °C	4	Twisted	2	0.02 in	Foil	Chrome	Polypropylene (PP)	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	Aluminum	100 %	300 V	Audio Control Instrumentation
Belden Inc. 8723 06010000	Multi-Pair		0.16 in	30	7 Strands	10000 ft	-20 °C	75 °C	4	Twisted	2	0.02 in	Foil	Chrome	Polypropylene (PP)	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	Aluminum	100 %	300 V	Audio Control Instrumentation	Enter Number of Feet in Order Quantity
