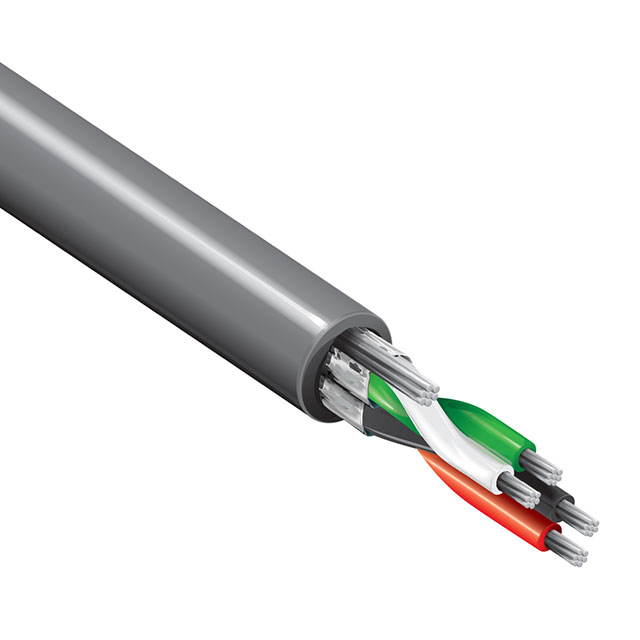

8723 06010001

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8723 06010001

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8723 06010001

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	4.06 mm
Jacket (Insulation) Diameter [diameter]	0.16 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Chrome
Length	3048 m
Length [x]	10000 ft
Number of Conductors	4
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

8723 Series

Part	Wire Gauge	Features	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Insulation	Length [x]	Length [x]	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Jacket Color	Cable Type	Number of Conductors	Conductor Material	Length	Voltage	Usage	Length
Belden Inc. 8723 060100	22 AWG	Drain Wire	7	30 AWG	Aluminum	0.02 in	0.508 mm	Poly-Vinyl Chloride (PVC)	Polypropylene (PP)	30.5 m	100 ft	Foil	4.06 mm	0.16 in	100 %	Chrome	Multi-Pair	4	Copper Tinned
Belden Inc. 8723 06010001	22 AWG		7	30 AWG	Aluminum	0.02 in	0.508 mm	Poly-Vinyl Chloride (PVC)	Polypropylene (PP)		10000 ft	Foil	4.06 mm	0.16 in	100 %	Chrome	Multi-Pair	4	Copper Tinned	3048 m	300 V	Audio Control Instrumentation
Belden Inc. 8723 0603280	22 AWG		7	30 AWG	Aluminum	0.02 in	0.508 mm	Poly-Vinyl Chloride (PVC)	Polypropylene (PP)			Foil	4.06 mm	0.16 in	100 %	Chrome	Multi-Pair	4	Copper Tinned	1000 m	300 V	Audio Control Instrumentation	3281 ft
Belden Inc. 8723 060U1000	22 AWG		7	30 AWG	Aluminum	0.02 in	0.508 mm	Poly-Vinyl Chloride (PVC)	Polypropylene (PP)			Foil	4.06 mm	0.16 in	100 %	Chrome	Multi-Pair	4	Copper Tinned	304.8 m	300 V	Audio Control Instrumentation	1000 ft
Belden Inc. 8723 0601640	22 AWG		7	30 AWG	Aluminum	0.02 in	0.508 mm	Poly-Vinyl Chloride (PVC)	Polypropylene (PP)	500 m	1640.4 ft	Foil	4.06 mm	0.16 in	100 %	Chrome	Multi-Pair	4	Copper Tinned		300 V	Audio Control Instrumentation
Belden Inc. 8723 06010000	22 AWG		7	30 AWG	Aluminum	0.02 in	0.508 mm	Poly-Vinyl Chloride (PVC)	Polypropylene (PP)		10000 ft	Foil	4.06 mm	0.16 in	100 %	Chrome	Multi-Pair	4	Copper Tinned	3048 m	300 V	Audio Control Instrumentation

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10000	$ 1.21

Description

General part information

8723 Series

4 (2 Pair Twisted) Conductor Multi-Pair Cable Chrome 22 AWG Foil 10000' (3048.0m)
