VP036584000AG

Active

AMPHENOL ANYTEK

PCB TERMINAL BLOCKS RISING CLAMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VP036584000AG

Active

AMPHENOL ANYTEK

PCB TERMINAL BLOCKS RISING CLAMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.45
		10	$ 1.86
		128	$ 1.51
		1024	$ 1.09
		5120	$ 0.96
		10112	$ 0.94

Description

General part information

VP03 Series

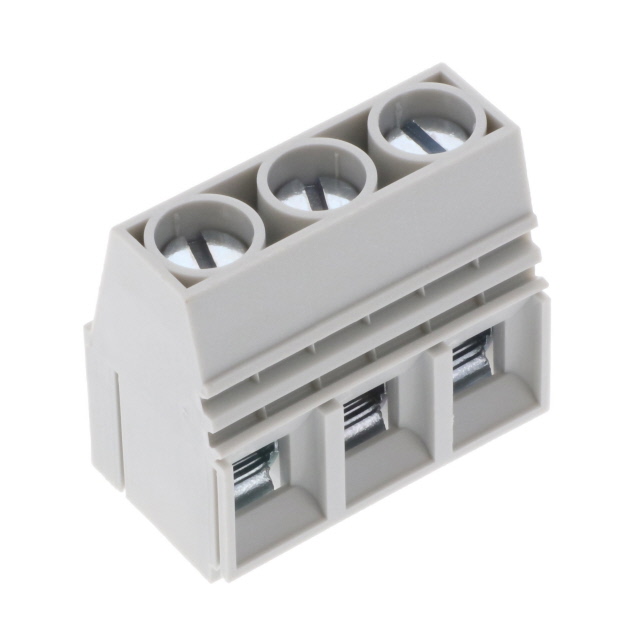

3 Position Wire to Board Terminal Block Horizontal with Board 0.400" (10.16mm) Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VP036584000AG	VP03 Series

Clamp Material - Plating	Steel, Zinc Plated	Steel, Zinc Plated
Color	Gray	Gray, Green
Current	65 A	65 A
Features	Interlocking (Side)	Interlocking (Side)
Housing Material	Thermoplastic	Thermoplastic
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	10.16 mm	10.16 - 12.7 mm
Pitch [x]	0.4 in	0.4 - 0.5 in
Positions Per Level	3	3
Screw Material - Plating	Steel, Zinc Plated	Steel, Zinc Plated
Screw Thread	M4.5	M4.5
Torque - Screw	2.15 Nm	2.15 Nm
Torque - Screw	19 Lb-In	19 Lb-In
Voltage	300 V	300 - 600 V
Wire Gauge [Max]	20 AWG	20 AWG
Wire Gauge [Min]	6 AWG	6 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

VP03 Series

TERM BLK 3P SIDE ENT 10.16MM PCB

Part	Screw Thread	Torque - Screw	Torque - Screw	Wire Termination	Pitch [x]	Pitch [x]	Mounting Type	Clamp Material - Plating	Features	Number of Levels	Screw Material - Plating	Housing Material	Voltage	Mating Orientation	Color	Current	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Max]	Wire Gauge [Min]
AMPHENOL ANYTEK VP0365880000G	M4.5	2.15 Nm	19 Lb-In	Screw - Rising Cage Clamp	10.16 mm	0.4 in	Through Hole	Steel, Zinc Plated	Interlocking (Side)	1	Steel, Zinc Plated	Thermoplastic	300 V	Horizontal with Board	Gray	65 A	3	-40 °C	115 °C	20 AWG	6 AWG
AMPHENOL ANYTEK VP0385880000G	M4.5	2.15 Nm	19 Lb-In	Screw - Rising Cage Clamp	12.7 mm	0.5 in	Through Hole	Steel, Zinc Plated	Interlocking (Side)	1	Steel, Zinc Plated	Thermoplastic	300 V	Horizontal with Board	Gray	65 A	3	-40 °C	115 °C	20 AWG	6 AWG
AMPHENOL ANYTEK VP0365870000G	M4.5	2.15 Nm	19 Lb-In	Screw - Rising Cage Clamp	10.16 mm	0.4 in	Through Hole	Steel, Zinc Plated	Interlocking (Side)	1	Steel, Zinc Plated	Thermoplastic	300 V	Horizontal with Board	Gray	65 A	3	-40 °C	115 °C	20 AWG	6 AWG
AMPHENOL ANYTEK VP0385540000G	M4.5	2.15 Nm	19 Lb-In	Screw - Rising Cage Clamp	12.7 mm	0.5 in	Through Hole	Steel, Zinc Plated	Interlocking (Side)	1	Steel, Zinc Plated	Thermoplastic	600 V	Horizontal with Board	Green	65 A	3	-40 °C	115 °C	20 AWG	6 AWG
AMPHENOL ANYTEK VP0365850000G	M4.5	2.15 Nm	19 Lb-In	Screw - Rising Cage Clamp	10.16 mm	0.4 in	Through Hole	Steel, Zinc Plated	Interlocking (Side)	1	Steel, Zinc Plated	Thermoplastic	300 V	Horizontal with Board	Gray	65 A	3	-40 °C	115 °C	20 AWG	6 AWG
AMPHENOL ANYTEK VP036584000AG	M4.5	2.15 Nm	19 Lb-In	Screw - Rising Cage Clamp	10.16 mm	0.4 in	Through Hole	Steel, Zinc Plated	Interlocking (Side)	1	Steel, Zinc Plated	Thermoplastic	300 V	Horizontal with Board	Gray	65 A	3	-40 °C	115 °C	20 AWG	6 AWG
