VP0385540000G

Active

AMPHENOL ANYTEK

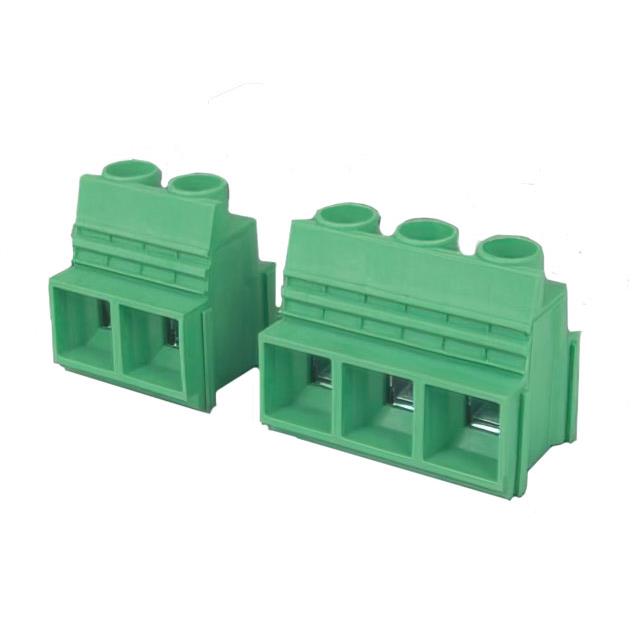

TERM BLK 3P SIDE ENT 12.7MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

VP0385540000G

Active

AMPHENOL ANYTEK

TERM BLK 3P SIDE ENT 12.7MM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VP0385540000G	VP03 Series

Clamp Material - Plating	Steel, Zinc Plated	Steel, Zinc Plated
Color	Green	Gray, Green
Current	65 A	65 A
Features	Interlocking (Side)	Interlocking (Side)
Housing Material	Thermoplastic	Thermoplastic
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	12.7 mm	10.16 - 12.7 mm
Pitch [x]	0.5 in	0.4 - 0.5 in
Positions Per Level	3	3
Screw Material - Plating	Steel, Zinc Plated	Steel, Zinc Plated
Screw Thread	M4.5	M4.5
Torque - Screw	2.15 Nm	2.15 Nm
Torque - Screw	19 Lb-In	19 Lb-In
Voltage	600 V	300 - 600 V
Wire Gauge [Max]	20 AWG	20 AWG
Wire Gauge [Min]	6 AWG	6 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

VP03 Series

TERM BLK 3P SIDE ENT 10.16MM PCB

Part	Screw Thread	Torque - Screw	Torque - Screw	Wire Termination	Pitch [x]	Pitch [x]	Mounting Type	Clamp Material - Plating	Features	Number of Levels	Screw Material - Plating	Housing Material	Voltage	Mating Orientation	Color	Current	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Max]	Wire Gauge [Min]
AMPHENOL ANYTEK VP0365880000G	M4.5	2.15 Nm	19 Lb-In	Screw - Rising Cage Clamp	10.16 mm	0.4 in	Through Hole	Steel, Zinc Plated	Interlocking (Side)	1	Steel, Zinc Plated	Thermoplastic	300 V	Horizontal with Board	Gray	65 A	3	-40 °C	115 °C	20 AWG	6 AWG
AMPHENOL ANYTEK VP0385880000G	M4.5	2.15 Nm	19 Lb-In	Screw - Rising Cage Clamp	12.7 mm	0.5 in	Through Hole	Steel, Zinc Plated	Interlocking (Side)	1	Steel, Zinc Plated	Thermoplastic	300 V	Horizontal with Board	Gray	65 A	3	-40 °C	115 °C	20 AWG	6 AWG
AMPHENOL ANYTEK VP0365870000G	M4.5	2.15 Nm	19 Lb-In	Screw - Rising Cage Clamp	10.16 mm	0.4 in	Through Hole	Steel, Zinc Plated	Interlocking (Side)	1	Steel, Zinc Plated	Thermoplastic	300 V	Horizontal with Board	Gray	65 A	3	-40 °C	115 °C	20 AWG	6 AWG
AMPHENOL ANYTEK VP0385540000G	M4.5	2.15 Nm	19 Lb-In	Screw - Rising Cage Clamp	12.7 mm	0.5 in	Through Hole	Steel, Zinc Plated	Interlocking (Side)	1	Steel, Zinc Plated	Thermoplastic	600 V	Horizontal with Board	Green	65 A	3	-40 °C	115 °C	20 AWG	6 AWG
AMPHENOL ANYTEK VP0365850000G	M4.5	2.15 Nm	19 Lb-In	Screw - Rising Cage Clamp	10.16 mm	0.4 in	Through Hole	Steel, Zinc Plated	Interlocking (Side)	1	Steel, Zinc Plated	Thermoplastic	300 V	Horizontal with Board	Gray	65 A	3	-40 °C	115 °C	20 AWG	6 AWG
AMPHENOL ANYTEK VP036584000AG	M4.5	2.15 Nm	19 Lb-In	Screw - Rising Cage Clamp	10.16 mm	0.4 in	Through Hole	Steel, Zinc Plated	Interlocking (Side)	1	Steel, Zinc Plated	Thermoplastic	300 V	Horizontal with Board	Gray	65 A	3	-40 °C	115 °C	20 AWG	6 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.59
		10	$ 1.97
		25	$ 1.85
		50	$ 1.64
		100	$ 1.61
		250	$ 1.57

Description

General part information

VP03 Series

3 Position Wire to Board Terminal Block Horizontal with Board 0.500" (12.70mm) Through Hole

Documents

Technical documentation and resources

No documents available
