TPS7H1201SHKS
ActiveVERY LOW DROPOUT REGULATOR WITH SOFTSTART AND POWERGOOD 16-CFP -55 TO 210
Deep-Dive with AI
Search across all available documentation for this part.
TPS7H1201SHKS
ActiveVERY LOW DROPOUT REGULATOR WITH SOFTSTART AND POWERGOOD 16-CFP -55 TO 210
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS7H1201SHKS | TPS7H1201 Series |
|---|---|---|
| Control Features | Power Good, Current Limit, Soft Start, Enable | Power Good, Current Limit, Soft Start, Enable |
| Current - Output | 500 mA | 500 mA |
| Current - Supply (Max) | - | 20 mA |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Regulators | 1 | 1 |
| Operating Temperature [Max] | 210 °C | 210 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Package / Case | 16-CFlatPack | Die, 16-CFlatPack |
| Protection Features | Over Temperature, Over Current | Over Temperature, Over Current |
| PSRR [Max] | 45 dB | 45 dB |
| PSRR [Min] | 20 dB | 20 dB |
| Supplier Device Package | - | Die |
| Voltage - Input (Max) [Max] | 7 V | 7 V |
| Voltage - Output (Max) [Max] | 6.8 V | 6.8 V |
| Voltage - Output (Min/Fixed) | 0.8 V | 0.8 V |
| Voltage Dropout (Max) [Max] | 0.1 V | 0.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS7H1201 Series
Very Low Dropout Regulator With SoftStart and Powergood
| Part | Voltage - Output (Min/Fixed) | Control Features | Mounting Type | Current - Output | Output Configuration | Current - Supply (Max) [Max] | Voltage Dropout (Max) [Max] | PSRR [Min] | PSRR [Max] | Output Type | Voltage - Output (Max) [Max] | Protection Features | Supplier Device Package | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Regulators | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS7H1201SKGD1The TPS7H1201-HT is a LDO linear regulator that uses a PMOS pass element configuration. This device operates over a wide range of input voltage, from 1.5 V to 7 V while offering excellent PSRR.
The TPS7H1201-HT features a precise and programmable foldback current limit implementation with a very-wide adjustment range. To support the complex power requirements of FPGAs, DSPs, or microcontrollers, the TPS7H1201-HT provides enable on and off functionality, programmable SoftStart, current sharing capability, and a PowerGood open-drain output.

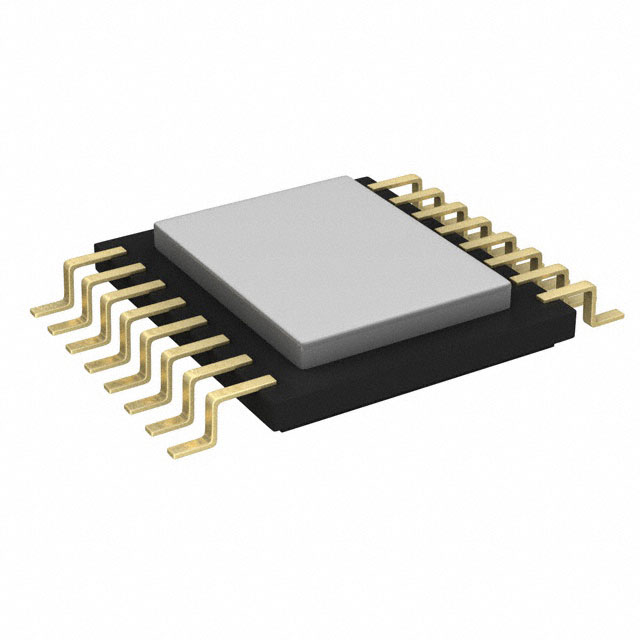

The TPS7H1201-HT is available in a thermally-enhanced 16-pin ceramic flatpack package (CFP) and KGD (bare die) package.
The TPS7H1201-HT is a LDO linear regulator that uses a PMOS pass element configuration. This device operates over a wide range of input voltage, from 1.5 V to 7 V while offering excellent PSRR.
The TPS7H1201-HT features a precise and programmable foldback current limit implementation with a very-wide adjustment range. To support the complex power requirements of FPGAs, DSPs, or microcontrollers, the TPS7H1201-HT provides enable on and off functionality, programmable SoftStart, current sharing capability, and a PowerGood open-drain output.
The TPS7H1201-HT is available in a thermally-enhanced 16-pin ceramic flatpack package (CFP) and KGD (bare die) package. | 0.8 V | Current Limit, Enable, Power Good, Soft Start | Surface Mount | 500 mA | Positive | 20 mA | 0.1 V | 20 dB | 45 dB | Adjustable | 6.8 V | Over Current, Over Temperature | Die | 7 V | 210 °C | -55 °C | 1 | Die |
Texas Instruments TPS7H1201SHKSThe TPS7H1201-HT is a LDO linear regulator that uses a PMOS pass element configuration. This device operates over a wide range of input voltage, from 1.5 V to 7 V while offering excellent PSRR.
The TPS7H1201-HT features a precise and programmable foldback current limit implementation with a very-wide adjustment range. To support the complex power requirements of FPGAs, DSPs, or microcontrollers, the TPS7H1201-HT provides enable on and off functionality, programmable SoftStart, current sharing capability, and a PowerGood open-drain output.
The TPS7H1201-HT is available in a thermally-enhanced 16-pin ceramic flatpack package (CFP) and KGD (bare die) package.
The TPS7H1201-HT is a LDO linear regulator that uses a PMOS pass element configuration. This device operates over a wide range of input voltage, from 1.5 V to 7 V while offering excellent PSRR.
The TPS7H1201-HT features a precise and programmable foldback current limit implementation with a very-wide adjustment range. To support the complex power requirements of FPGAs, DSPs, or microcontrollers, the TPS7H1201-HT provides enable on and off functionality, programmable SoftStart, current sharing capability, and a PowerGood open-drain output.
The TPS7H1201-HT is available in a thermally-enhanced 16-pin ceramic flatpack package (CFP) and KGD (bare die) package. | 0.8 V | Current Limit, Enable, Power Good, Soft Start | Surface Mount | 500 mA | Positive | 0.1 V | 20 dB | 45 dB | Adjustable | 6.8 V | Over Current, Over Temperature | 7 V | 210 °C | -55 °C | 1 | 16-CFlatPack |
Description
General part information
TPS7H1201 Series
The TPS7H1201-HT is a LDO linear regulator that uses a PMOS pass element configuration. This device operates over a wide range of input voltage, from 1.5 V to 7 V while offering excellent PSRR.
The TPS7H1201-HT features a precise and programmable foldback current limit implementation with a very-wide adjustment range. To support the complex power requirements of FPGAs, DSPs, or microcontrollers, the TPS7H1201-HT provides enable on and off functionality, programmable SoftStart, current sharing capability, and a PowerGood open-drain output.
The TPS7H1201-HT is available in a thermally-enhanced 16-pin ceramic flatpack package (CFP) and KGD (bare die) package.
