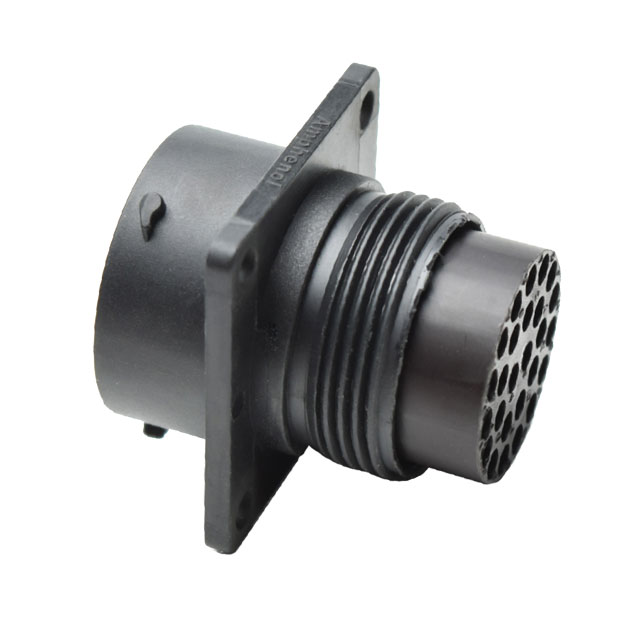

RTS016N26P03

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 26POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEco|mate® Aquarius™ Flyer Datasheet +1

RTS016N26P03

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 26POS PNL MT

Deep-Dive with AI

DocumentsEco|mate® Aquarius™ Flyer Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS016N26P03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Includes	1 Connector, 1 Gasket
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	26
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert [Max]	26
Shell Size - Insert [Min]	16
Shielding	Unshielded
Type	For Male Pins

RTS016 Series

Part	Mounting Feature	Type	Fastening Type	Number of Positions	Contact Type	Insert Material	Connector Type	Contact Shape	Orientation	Material Flammability Rating	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Note	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Size	Housing Color	Features	Ingress Protection	Shielding	Shell Size - Insert	Material	Color	Accessory Type	For Use With/Related Products	Shell Size - Insert
Amphenol Sine Systems Corp RTS016N26SHEC03	Flange	For Female Sockets	Bayonet Lock	26	Crimp	Thermoplastic	Receptacle Housing	Circular	N	UL94 V-0	1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	125 °C	-40 °C	Contacts Not Included	16	26	20	Black	Backshell	IP67 IP69K	Unshielded
Amphenol Sine Systems Corp RTS016DCG																			Contains Strap with Ring Dust Tight Waterproof			16	Thermoplastic	Black	Cap (Cover) Dust	Receptacle Connectors
Amphenol Sine Systems Corp RTS016N26P03	Flange	For Male Pins	Bayonet Lock	26	Crimp	Thermoplastic	Receptacle Housing	Circular	N	UL94 V-0	1 Connector 1 Gasket	125 °C	-40 °C	Contacts Not Included	16	26	20	Black		IP67 IP69K	Unshielded
Amphenol Sine Systems Corp RTS016N4SHEC03	Flange	For Female Sockets	Bayonet Lock	4	Crimp	Thermoplastic	Receptacle Housing	Circular	N	UL94 V-0	1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	125 °C	-40 °C	Contacts Not Included			8	Black	Backshell	IP67 IP69K	Unshielded						16-4
Amphenol Sine Systems Corp RTS016N4PHEC03	Flange	For Male Pins	Bayonet Lock	4	Crimp	Thermoplastic	Receptacle Housing	Circular	N	UL94 V-0	1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	125 °C	-40 °C	Contacts Not Included			8	Black	Backshell	IP67 IP69K	Unshielded						16-4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 9.55

Description

General part information

RTS016 Series

26 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

Eco|mate® Aquarius™ Flyer

Datasheet

ecomate-Family-Flyer-2019

Datasheet
