RTS016N26SHEC03
ActiveAmphenol Sine Systems Corp

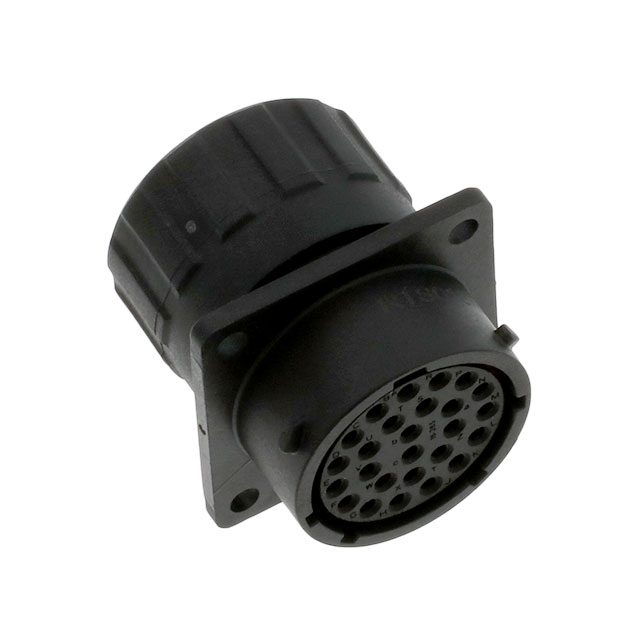

CONN RCPT HSG FMALE 26POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
RTS016N26SHEC03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG FMALE 26POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS016N26SHEC03 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Housing Color | Black |
| Includes | 1 Backshell, 1 Seal, 1 Connector, 1 Ring, 1 Gasket, 1 O-Ring |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 26 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Size - Insert [Max] | 26 |
| Shell Size - Insert [Min] | 16 |
| Shielding | Unshielded |
| Type | For Female Sockets |
RTS016 Series
| Part | Mounting Feature | Type | Fastening Type | Number of Positions | Contact Type | Insert Material | Connector Type | Contact Shape | Orientation | Material Flammability Rating | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Note | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Contact Size | Housing Color | Features | Ingress Protection | Shielding | Shell Size - Insert | Material | Color | Accessory Type | For Use With/Related Products | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Flange | For Female Sockets | Bayonet Lock | 26 | Crimp | Thermoplastic | Receptacle Housing | Circular | N | UL94 V-0 | 1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal | 125 °C | -40 °C | Contacts Not Included | 16 | 26 | 20 | Black | Backshell | IP67 IP69K | Unshielded | ||||||
Amphenol Sine Systems Corp | Contains Strap with Ring Dust Tight Waterproof | 16 | Thermoplastic | Black | Cap (Cover) Dust | Receptacle Connectors | |||||||||||||||||||||
Amphenol Sine Systems Corp | Flange | For Male Pins | Bayonet Lock | 26 | Crimp | Thermoplastic | Receptacle Housing | Circular | N | UL94 V-0 | 1 Connector 1 Gasket | 125 °C | -40 °C | Contacts Not Included | 16 | 26 | 20 | Black | IP67 IP69K | Unshielded | |||||||
Amphenol Sine Systems Corp | Flange | For Female Sockets | Bayonet Lock | 4 | Crimp | Thermoplastic | Receptacle Housing | Circular | N | UL94 V-0 | 1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal | 125 °C | -40 °C | Contacts Not Included | 8 | Black | Backshell | IP67 IP69K | Unshielded | 16-4 | |||||||
Amphenol Sine Systems Corp | Flange | For Male Pins | Bayonet Lock | 4 | Crimp | Thermoplastic | Receptacle Housing | Circular | N | UL94 V-0 | 1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal | 125 °C | -40 °C | Contacts Not Included | 8 | Black | Backshell | IP67 IP69K | Unshielded | 16-4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.27 | |
| 10 | $ 13.30 | |||
| 25 | $ 12.04 | |||
| 50 | $ 11.18 | |||
| 100 | $ 10.41 | |||
| 250 | $ 9.85 | |||
Description
General part information
RTS016 Series
26 Position Circular Connector Receptacle Housing Panel Mount Backshell
