796689-8
ActiveTE Connectivity AMP Connectors

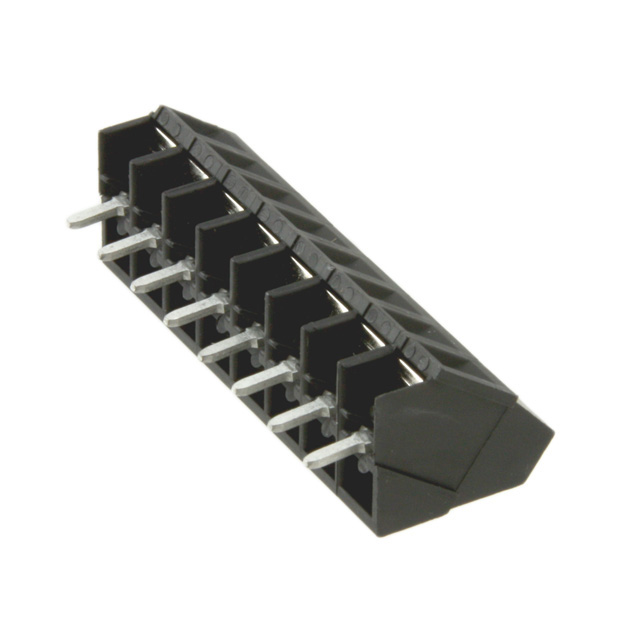

TERM BLOCK 8POS 35DEG 5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796689-8
ActiveTE Connectivity AMP Connectors
TERM BLOCK 8POS 35DEG 5MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796689-8 | 796689 Series |
|---|---|---|
| Clamp Material - Plating | Brass - Tin Plated | Brass - Tin Plated |
| Color | Black | Black |
| Contact Material - Plating [custom] | Brass - Tin Plated | Brass - Tin Plated |
| Current | 17.5 A | 17.5 A |
| Features | Interlocking (Side) | Interlocking (Side) |
| Mating Orientation | 35 ° | 35 ° |
| Mating Orientation | 145 ° | 145 ° |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Positions Per Level | 8 | 2 - 20 |
| Screw Material - Plating | Brass - Nickel Plated | Brass - Nickel Plated |
| Screw Thread | M3 | M3 |
| Torque - Screw | 0.79 Nm | 0.79 Nm |
| Torque - Screw | 7 Lb-In | 7 Lb-In |
| Voltage | 300 V | 300 V |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
796689 Series
TERM BLOCK 8POS 35DEG 5MM PCB
| Part | Number of Levels | Pitch [x] | Pitch [x] | Color | Wire Gauge [Max] | Wire Gauge [Min] | Wire Termination | Screw Thread | Voltage | Current | Clamp Material - Plating | Mounting Type | Screw Material - Plating | Positions Per Level | Contact Material - Plating [custom] | Torque - Screw | Torque - Screw | Features | Mating Orientation | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796689-8 | 1 | 5 mm | 0.197 in | Black | 30 AWG | 12 AWG | Screw - Rising Cage Clamp | M3 | 300 V | 17.5 A | Brass - Tin Plated | Through Hole | Brass - Nickel Plated | 8 | Brass - Tin Plated | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 35 ° | 145 ° |
TE Connectivity AMP Connectors 796689-4 | 1 | 5 mm | 0.197 in | Black | 30 AWG | 12 AWG | Screw - Rising Cage Clamp | M3 | 300 V | 17.5 A | Brass - Tin Plated | Through Hole | Brass - Nickel Plated | 4 | Brass - Tin Plated | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 35 ° | 145 ° |
TE Connectivity AMP Connectors 1-796689-0 | 1 | 5 mm | 0.197 in | Black | 30 AWG | 12 AWG | Screw - Rising Cage Clamp | M3 | 300 V | 17.5 A | Brass - Tin Plated | Through Hole | Brass - Nickel Plated | 10 | Brass - Tin Plated | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 35 ° | 145 ° |
TE Connectivity AMP Connectors 2-796689-0 | 1 | 5 mm | 0.197 in | Black | 30 AWG | 12 AWG | Screw - Rising Cage Clamp | M3 | 300 V | 17.5 A | Brass - Tin Plated | Through Hole | Brass - Nickel Plated | 20 | Brass - Tin Plated | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 35 ° | 145 ° |
TE Connectivity AMP Connectors 1-796689-3 | 1 | 5 mm | 0.197 in | Black | 30 AWG | 12 AWG | Screw - Rising Cage Clamp | M3 | 300 V | 17.5 A | Brass - Tin Plated | Through Hole | Brass - Nickel Plated | 13 | Brass - Tin Plated | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 35 ° | 145 ° |
TE Connectivity AMP Connectors 1-796689-1 | 1 | 5 mm | 0.197 in | Black | 30 AWG | 12 AWG | Screw - Rising Cage Clamp | M3 | 300 V | 17.5 A | Brass - Tin Plated | Through Hole | Brass - Nickel Plated | 11 | Brass - Tin Plated | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 35 ° | 145 ° |
TE Connectivity AMP Connectors 796689-3 | 1 | 5 mm | 0.197 in | Black | 30 AWG | 12 AWG | Screw - Rising Cage Clamp | M3 | 300 V | 17.5 A | Brass - Tin Plated | Through Hole | Brass - Nickel Plated | 3 | Brass - Tin Plated | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 35 ° | 145 ° |
TE Connectivity AMP Connectors 796689-2 | 1 | 5 mm | 0.197 in | Black | 30 AWG | 12 AWG | Screw - Rising Cage Clamp | M3 | 300 V | 17.5 A | Brass - Tin Plated | Through Hole | Brass - Nickel Plated | 2 | Brass - Tin Plated | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 35 ° | 145 ° |
TE Connectivity AMP Connectors 796689-7 | 1 | 5 mm | 0.197 in | Black | 30 AWG | 12 AWG | Screw - Rising Cage Clamp | M3 | 300 V | 17.5 A | Brass - Tin Plated | Through Hole | Brass - Nickel Plated | 7 | Brass - Tin Plated | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 35 ° | 145 ° |
TE Connectivity AMP Connectors 796689-6 | 1 | 5 mm | 0.197 in | Black | 30 AWG | 12 AWG | Screw - Rising Cage Clamp | M3 | 300 V | 17.5 A | Brass - Tin Plated | Through Hole | Brass - Nickel Plated | 6 | Brass - Tin Plated | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 35 ° | 145 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.94 | |
| 10 | $ 4.92 | |||
| 25 | $ 4.57 | |||
| 50 | $ 4.32 | |||
| 100 | $ 4.08 | |||
| 250 | $ 3.79 | |||
| 500 | $ 3.58 | |||
| 1000 | $ 3.38 | |||
Description
General part information
796689 Series
8 Position Wire to Board Terminal Block 35° (145°) Angle with Board 0.197" (5.00mm) Through Hole
