796689-4

Active

TE Connectivity AMP Connectors

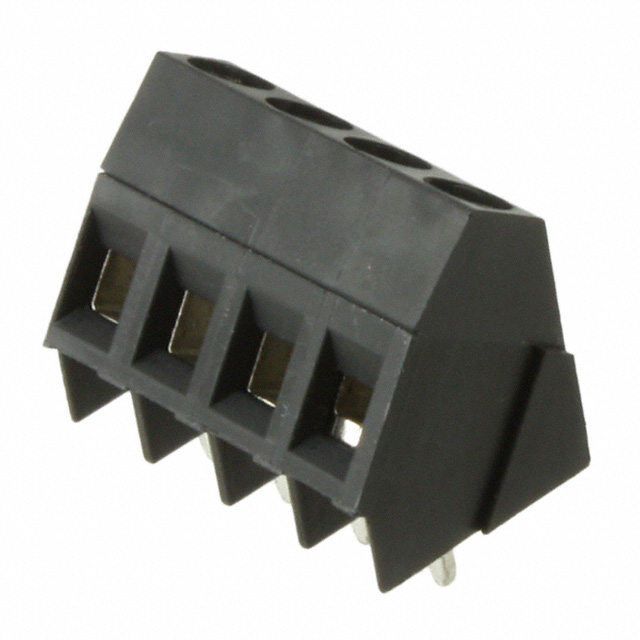

TERM BLOCK 4POS 35DEG 5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796689-4

Active

TE Connectivity AMP Connectors

TERM BLOCK 4POS 35DEG 5MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.16
		10	$ 1.93
		150	$ 1.74
		1050	$ 1.41
		5100	$ 1.24

Description

General part information

796689 Series

4 Position Wire to Board Terminal Block 35° (145°) Angle with Board 0.197" (5.00mm) Through Hole

Documents

Technical documentation and resources

Datasheet

Specification	796689-4	796689 Series

Clamp Material - Plating	Brass - Tin Plated	Brass - Tin Plated
Color	Black	Black
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side)
Mating Orientation	35 °	35 °
Mating Orientation	145 °	145 °
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	4	2 - 20
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

Part

Number of Levels

Pitch [x]

Color

Wire Gauge [Max]

Wire Gauge [Min]

Wire Termination

Screw Thread

Voltage

Current

Clamp Material - Plating

Mounting Type

Screw Material - Plating

Positions Per Level

Contact Material - Plating [custom]

Torque - Screw

Features

Mating Orientation

TE Connectivity AMP Connectors
