796689-3

Active

TE Connectivity AMP Connectors

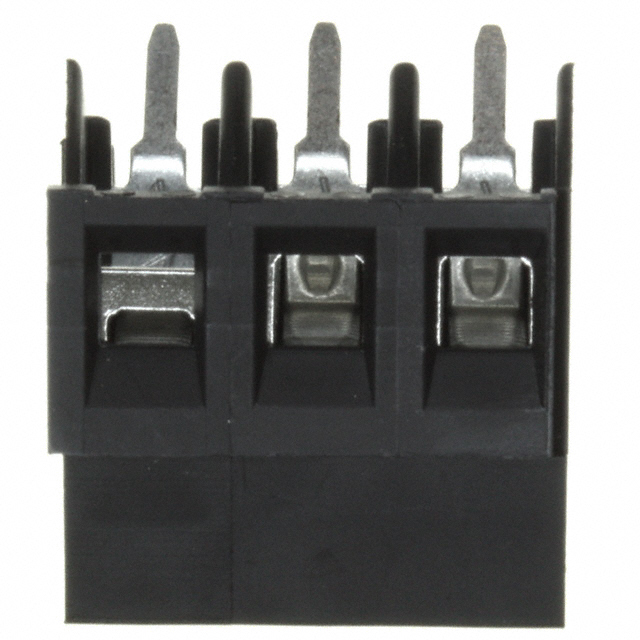

TERM BLOCK 3POS 35DEG 5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796689-3

Active

TE Connectivity AMP Connectors

TERM BLOCK 3POS 35DEG 5MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.63
		10	$ 1.49
		200	$ 1.33
		1000	$ 1.07
		5000	$ 0.96
		10000	$ 0.91

Description

General part information

796689 Series

3 Position Wire to Board Terminal Block 35° (145°) Angle with Board 0.197" (5.00mm) Through Hole

Documents

Technical documentation and resources

Datasheet

Specification	796689-3	796689 Series

Clamp Material - Plating	Brass - Tin Plated	Brass - Tin Plated
Color	Black	Black
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side)
Mating Orientation	35 °	35 °
Mating Orientation	145 °	145 °
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	3	2 - 20
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

Part

Number of Levels

Pitch [x]

Color

Wire Gauge [Max]

Wire Gauge [Min]

Wire Termination

Screw Thread

Voltage

Current

Clamp Material - Plating

Mounting Type

Screw Material - Plating

Positions Per Level

Contact Material - Plating [custom]

Torque - Screw

Features

Mating Orientation

TE Connectivity AMP Connectors

796689-8

5 mm

0.197 in

Black

30 AWG

12 AWG

Screw - Rising Cage Clamp

300 V

17.5 A

Brass - Tin Plated

Through Hole

Brass - Nickel Plated

Brass - Tin Plated

0.79 Nm

7 Lb-In

Interlocking (Side)

35 °

145 °

TE Connectivity AMP Connectors

796689-4

5 mm

0.197 in

Black

30 AWG

12 AWG

Screw - Rising Cage Clamp

300 V

17.5 A

Brass - Tin Plated

Through Hole

Brass - Nickel Plated

Brass - Tin Plated

0.79 Nm

7 Lb-In

Interlocking (Side)

35 °

145 °

TE Connectivity AMP Connectors

1-796689-0

5 mm

0.197 in

Black

30 AWG

12 AWG

Screw - Rising Cage Clamp

300 V

17.5 A

Brass - Tin Plated

Through Hole

Brass - Nickel Plated

Brass - Tin Plated

0.79 Nm

7 Lb-In

Interlocking (Side)

35 °

145 °

TE Connectivity AMP Connectors

2-796689-0

5 mm

0.197 in

Black

30 AWG

12 AWG

Screw - Rising Cage Clamp

300 V

17.5 A

Brass - Tin Plated

Through Hole

Brass - Nickel Plated

Brass - Tin Plated

0.79 Nm

7 Lb-In

Interlocking (Side)

35 °

145 °

TE Connectivity AMP Connectors

1-796689-3

5 mm

0.197 in

Black

30 AWG

12 AWG

Screw - Rising Cage Clamp

300 V

17.5 A

Brass - Tin Plated

Through Hole

Brass - Nickel Plated

Brass - Tin Plated

0.79 Nm

7 Lb-In

Interlocking (Side)

35 °

145 °

TE Connectivity AMP Connectors

1-796689-1

5 mm

0.197 in

Black

30 AWG

12 AWG

Screw - Rising Cage Clamp

300 V

17.5 A

Brass - Tin Plated

Through Hole

Brass - Nickel Plated

Brass - Tin Plated

0.79 Nm

7 Lb-In

Interlocking (Side)

35 °

145 °

TE Connectivity AMP Connectors

796689-3

5 mm

0.197 in

Black

30 AWG

12 AWG

Screw - Rising Cage Clamp

300 V

17.5 A

Brass - Tin Plated

Through Hole

Brass - Nickel Plated

Brass - Tin Plated

0.79 Nm

7 Lb-In

Interlocking (Side)

35 °

145 °

TE Connectivity AMP Connectors

796689-2

5 mm

0.197 in

Black

30 AWG

12 AWG

Screw - Rising Cage Clamp

300 V

17.5 A

Brass - Tin Plated

Through Hole

Brass - Nickel Plated

Brass - Tin Plated

0.79 Nm

7 Lb-In

Interlocking (Side)

35 °

145 °

TE Connectivity AMP Connectors

796689-7

5 mm

0.197 in

Black

30 AWG

12 AWG

Screw - Rising Cage Clamp

300 V

17.5 A

Brass - Tin Plated

Through Hole

Brass - Nickel Plated

Brass - Tin Plated

0.79 Nm

7 Lb-In

Interlocking (Side)

35 °

145 °

TE Connectivity AMP Connectors

796689-6

5 mm

0.197 in

Black

30 AWG

12 AWG

Screw - Rising Cage Clamp

300 V

17.5 A

Brass - Tin Plated

Through Hole

Brass - Nickel Plated

Brass - Tin Plated

0.79 Nm

7 Lb-In

Interlocking (Side)

35 °

145 °

Part	Number of Levels	Pitch [x]	Pitch [x]	Color	Wire Gauge [Max]	Wire Gauge [Min]	Wire Termination	Screw Thread	Voltage	Current	Clamp Material - Plating	Mounting Type	Screw Material - Plating	Positions Per Level	Contact Material - Plating [custom]	Torque - Screw	Torque - Screw	Features	Mating Orientation	Mating Orientation
TE Connectivity AMP Connectors 796689-8	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	8	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 796689-4	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	4	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 1-796689-0	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	10	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 2-796689-0	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	20	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 1-796689-3	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	13	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 1-796689-1	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	11	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 796689-3	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	3	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 796689-2	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	2	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 796689-7	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	7	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 796689-6	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	6	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
