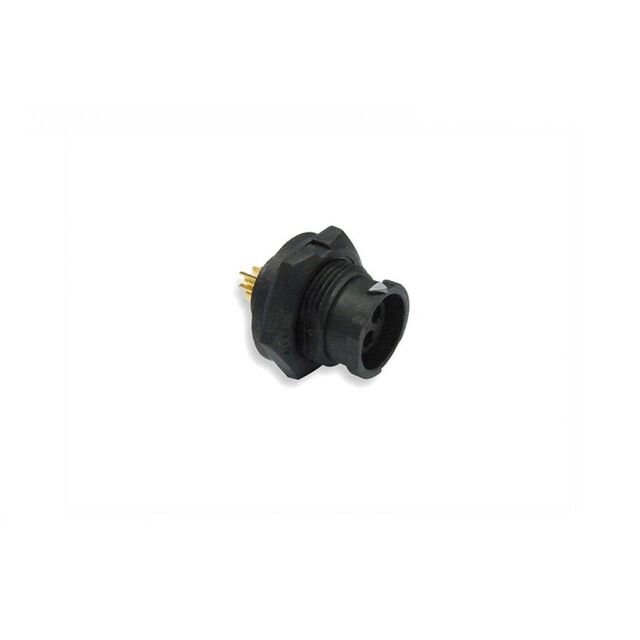

BB-02PMFS-QC8001

Active

Amphenol LTW

STANDARD RECEPTACLE(FRONT)

Search across all available documentation for this part.

Active

Amphenol LTW

STANDARD RECEPTACLE(FRONT)

Technical Specifications

Parameters and characteristics for this part

Specification	BB-02PMFS-QC8001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Twist
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Number of Positions	Ingress Protection	Connector Type	Insert Material	Material Flammability Rating	Mounting Feature	Shielding	Contact Finish - Mating	Fastening Type	Orientation	Voltage Rating	Color	Current Rating (Amps)	Primary Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert
Amphenol LTW BB-02PMFS-QC800P	2	IP68 - Dust Tight Waterproof	Receptacle Female Sockets	Thermoplastic	UL94 V-0	Bulkhead - Front Side Nut	Unshielded	Gold	Push-Twist	Keyed	250 VAC	Black	10 A	Plastic	Copper Alloy	-40 °C	105 ░C	B
Amphenol LTW BB-02PMFS-QC8001	2	IP68 - Dust Tight Waterproof	Receptacle Female Sockets	Thermoplastic	UL94 V-0	Bulkhead - Front Side Nut	Unshielded	Gold	Push-Twist	Keyed	250 VAC	Black	10 A	Plastic	Copper Alloy	-40 °C	105 ░C	B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 5.79

General part information

2 (Data) Position Circular Connector Receptacle, Female Sockets Solder Cup
