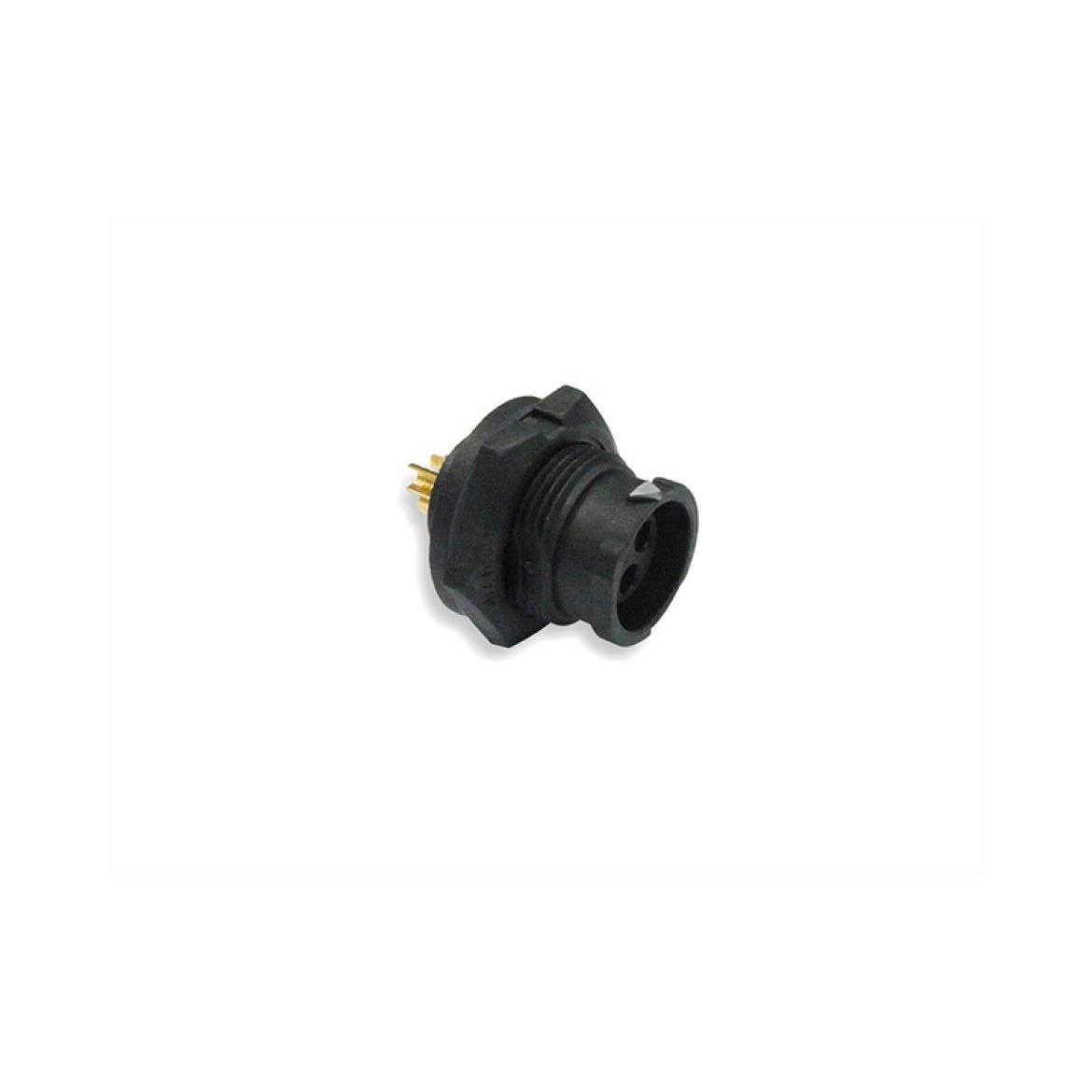

BB-02PMFS-QC800P - BB-02PMFS-QC800P

BB-02PMFS-QC800P

Active
Amphenol LTW

X-LOK, STANDARD SIZE, PLASTIC, 10A, 02 PINS, MALE CONNECTOR, FEMALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IP68 ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
BB-02PMFS-QC800P - BB-02PMFS-QC800P

BB-02PMFS-QC800P

Active
Amphenol LTW

X-LOK, STANDARD SIZE, PLASTIC, 10A, 02 PINS, MALE CONNECTOR, FEMALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IP68 ROHS

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationBB-02PMFS-QC800P
ColorBlack
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingGold
Contact MaterialCopper Alloy
Current Rating (Amps)10 A
Fastening TypePush-Twist
Ingress ProtectionIP68 - Dust Tight, Waterproof
Insert MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting FeatureBulkhead - Front Side Nut
Number of Positions2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialPlastic
Shell Size - InsertB
ShieldingUnshielded
Voltage Rating250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 6.40
10$ 5.79
100$ 5.07
1000$ 3.73
NewarkEach 10$ 5.54
25$ 5.21
50$ 4.81
100$ 4.48
250$ 4.06
500$ 3.96
1000$ 3.55

Description

General part information

BB-02PMFS Series

2 (Power) Position Circular Connector Receptacle, Female Sockets Solder Cup
